Home > Chemical Accessories > Source Factory Hot Selling Titanium Flange Different Type ASME B16.5-2017

1/1

Source Factory Hot Selling Titanium Flange Different Type ASME B16.5-2017

Name: Source Factory Hot Selling Titanium Flange Different Type ASME B16.5-2017
Brand: BJLH TITANIUM SHOP
SKU: 1601114213
Price: 77.53 USD
Availability: InStock

0.0 (0)

0 Sold

$77.53 ~~$78.38~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Key attributes

Industry-specific attributes

Powder Or Not

Not Powder

Ti Content (%)

99.6%

Other attributes

Place of Origin

Shaanxi, China

Brand Name

LiHua Ti

Model Number

LH-F

Application

Pipe Connection

Grade

Titanium

Processing Service

Welding, Cutting

Standard

ASME/ANSI B16.5,DIN2630~2633,BS etc

Standard or Nonstandard

Nonstandard

Size

1/2''~80''(DN10~2000)

Material

Gr1,Gr2,Gr5,Gr7,Gr9,Gr12

DIN

PN6,PN10,PN16,PN25 though PN250

Pressure rating

0.6~32Mpa

Working temperature

-60°C~250°C

Flange surface

FF,RF,TG,RJ etc

Quality control

Ultrasonic Testing & Material Test Report EN10204.3.1

Purposes

can be used for pipes, valves, equipment, petroleum, chemicals, etc.

Packaging and delivery

Selling Units:

Single item

Single package size:

65X23X58 cm

Single gross weight:

9.000 kg

Product descriptions from the supplier

Products Description

Titanium Flanges

Material Grade: Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Standard: ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5.

Technique: Forged and CNC Machined.

Type: WNRF , SORF , BLIND ,SW, PL.

Application: used in cars, glasses,medical equipment , electronics , petrochemical equ ipment.

Advantage: Long service life, corrosion -resistant, hign yeiled strenth and tensile strength.

Product Paramenters

size	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/
Flange Face Type	Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ)
Grade	Titanium Gr1, Titanium Gr2, Titanium Gr4, Titanium Gr5, Titanium Gr7
Available Dimensions	OD:200-1300mm ID:100-900mm Height:35-250mm

Details Images

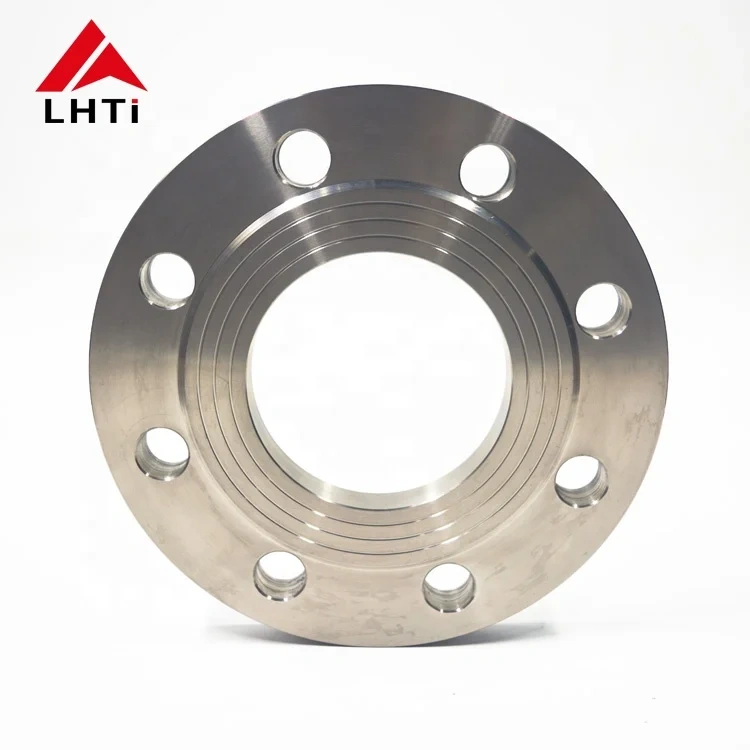

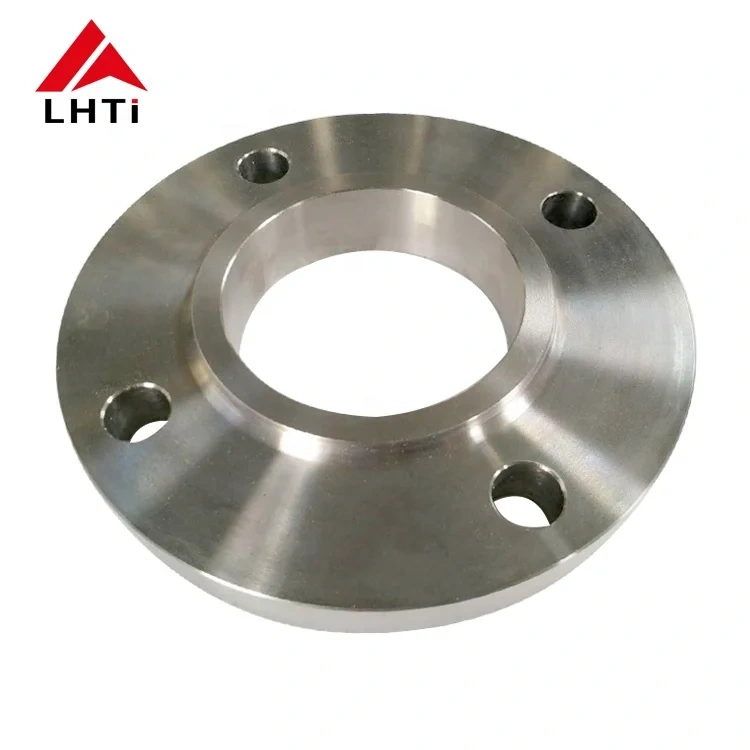

Plate Flat Welding Flange

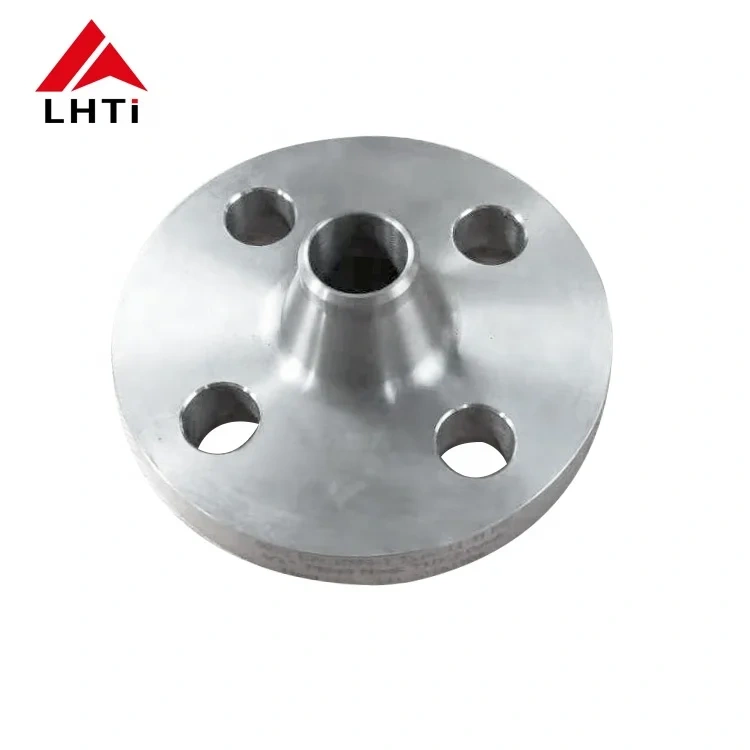

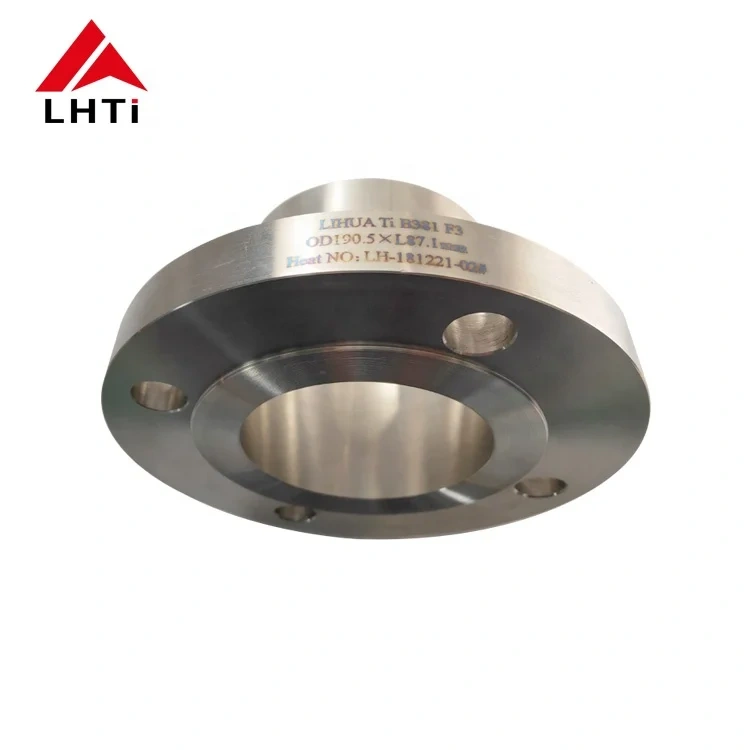

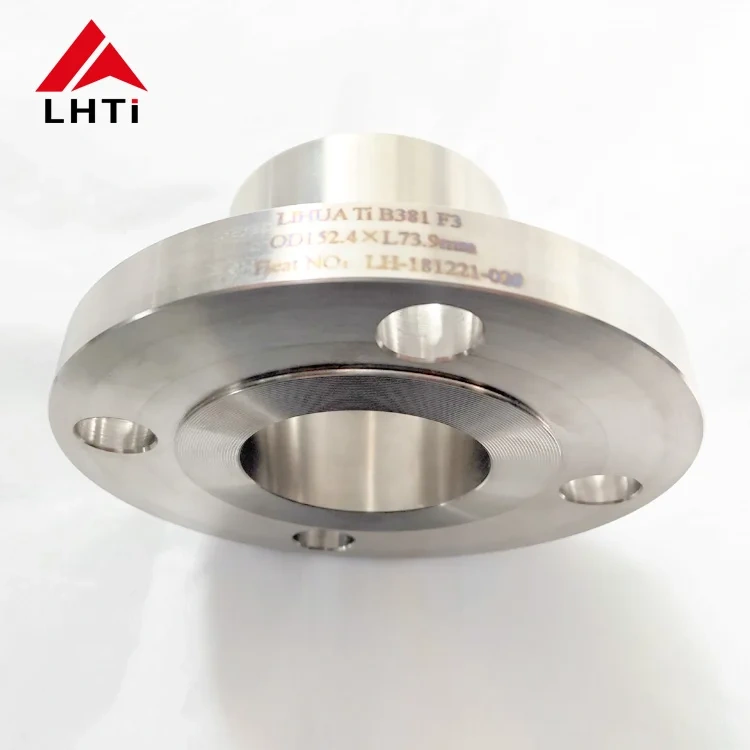

Welded Flange with Neck

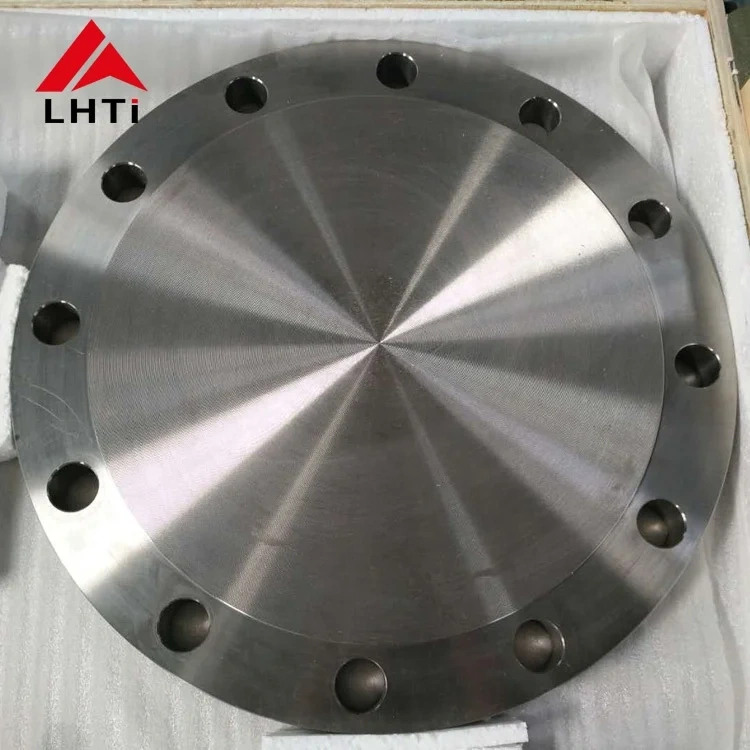

Blind Flange

Titanium Flanges are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others.

All our Ti Alloy Flange are manufactured in accordance with international standards.

Titanium Pipe Flange are packaged . Standard export packaging is done in plywood cases, inside is filled in foam films to protect goods to ensure that there is no damage during transit.

All Titanium Plate Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on Titanium Flanges.

Manufacturing Technique

Production Flow

Raw Material ⇒ Inspection Material ⇒ Cutting ⇒ Heating ⇒ Forging ⇒ Heat Treatment ⇒ Machining ⇒ Drilling ⇒ Marking ⇒

Washing/Cleaning ⇒ Final Inspection ⇒ Packing ⇒ Delivery

Application

Why Choose Us

1. Service

* We have the stocks so we would provide our clients the short delivery time
* Strict control from raw materials till products finished, so the quality is guaranteed.
* Customized sizes are offered as well as specified sizes and multiple sizes.
* Strict quality test from raw material to product.
* Original mill sheet test reports EN 10204.3.1 is available.

2. Quality Assurance

A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality
Management System.

B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.

C. Chemical Composition making sure all chemical components can satisfy customer’s demands.

D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.

Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the
MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?

--Sure, and we welcome the customized products.

Q3.--Can we get the free sample?

--Sure.

Q4.--What about the payment terms?

--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.

05.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and
special requests also needed.
