Grade 5/ERTi-5 MIG titanium WELDING wire for sale
1>. Available Diameter, Type & Packing
| Size (mm) | Dia 0.5 | Dia 0.8 | Dia 1.0 | Dia 1.2 | Dia 1.6 | Dia 2.0 | Dia 2.4 | Dia 2.5 | Dia 3.0 | Dia 3.2 | Dia 4.0 | Dia 4.8 | Dia 5.0 |
| Size (inch) | 0.020' | 0.031" | 0.039" | 0.047" | 0.062" | 0.079" | 0.093" | 0.098' | 0.12" | 0.125" | 0.16' | 0.19' | 0.20' |
| Straight | OK | OK | OK | OK | OK | OK | OK | OK | OK | ||||
| Spool | OK | OK | OK | OK | OK | ||||||||
| Coil | OK | OK | OK | OK | OK | OK | OK | OK | OK |

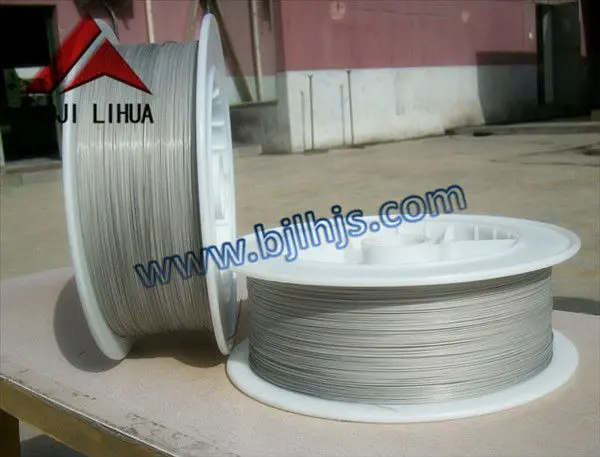

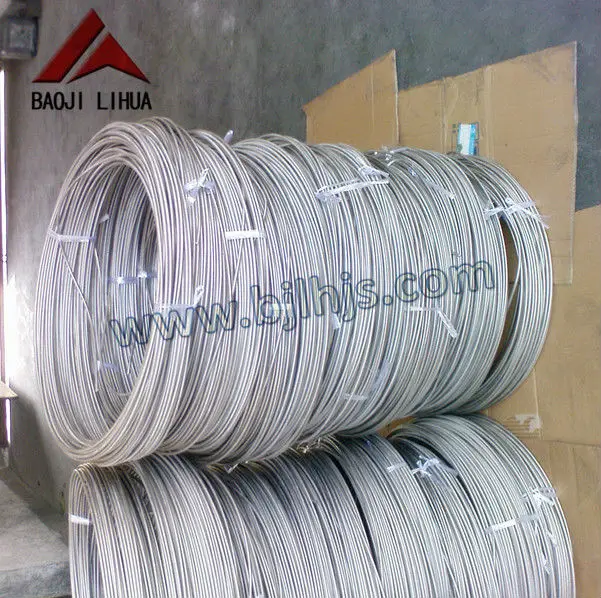

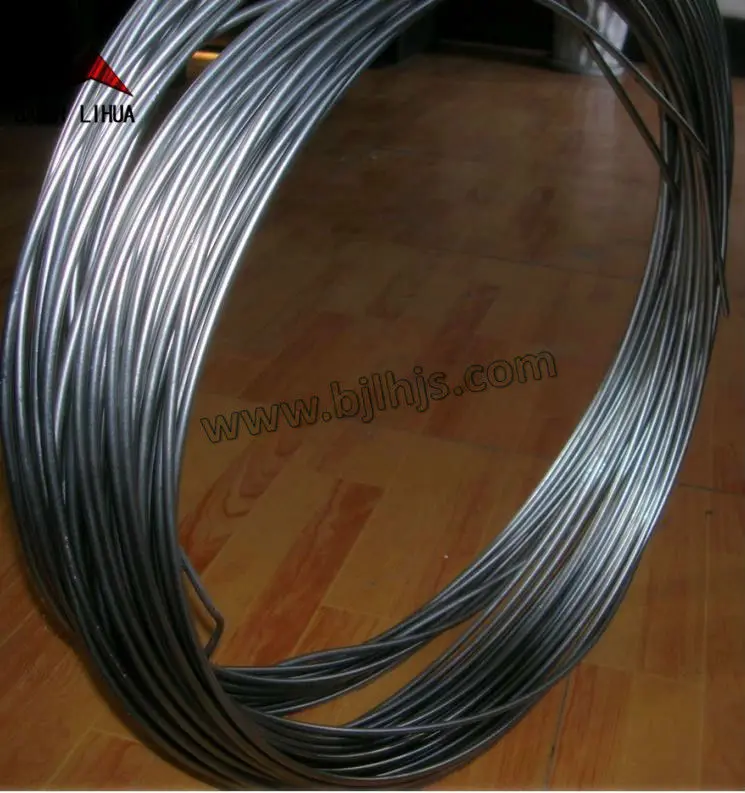

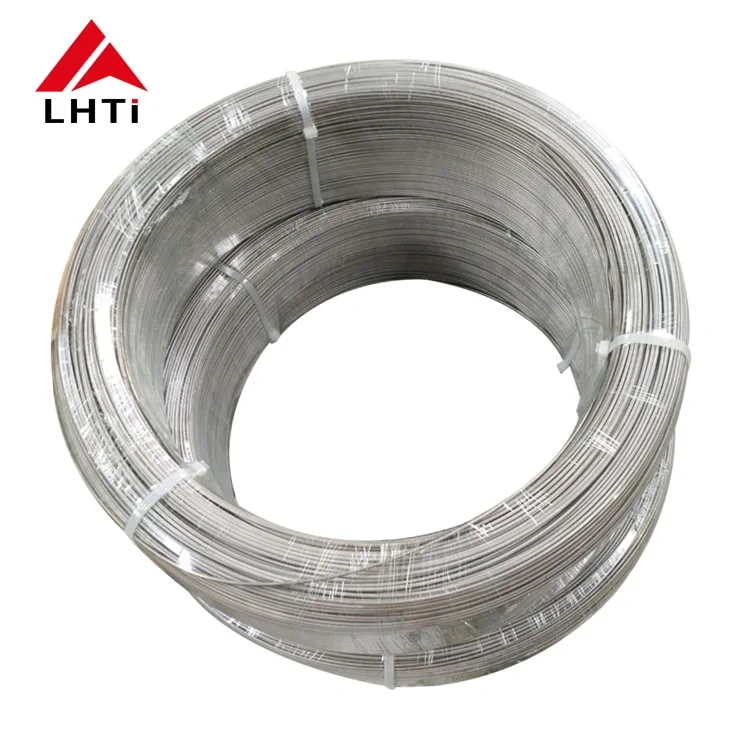

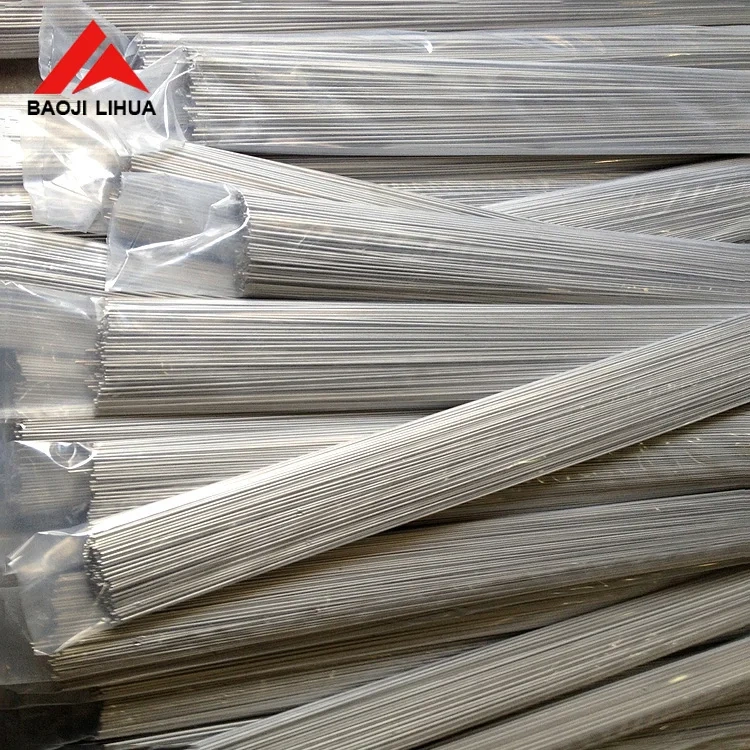

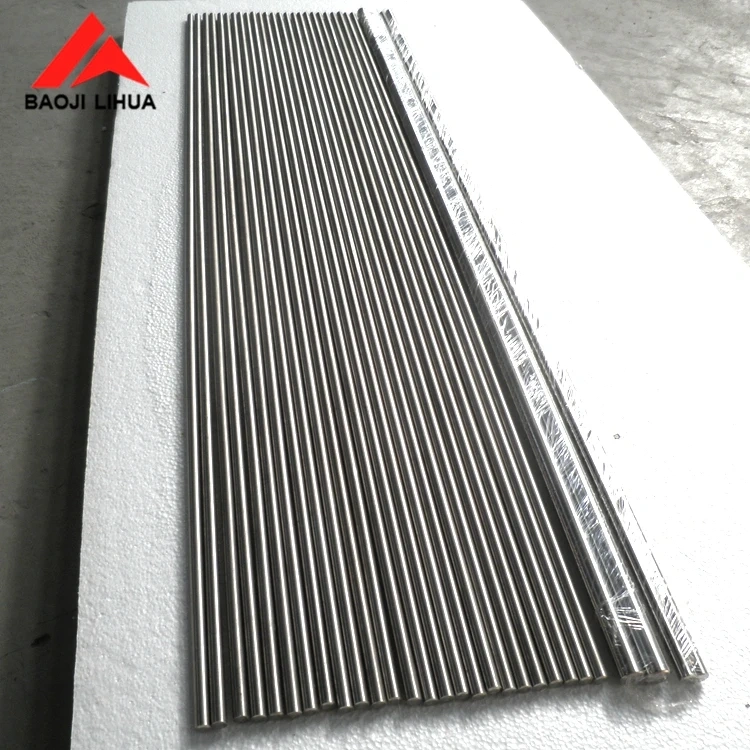

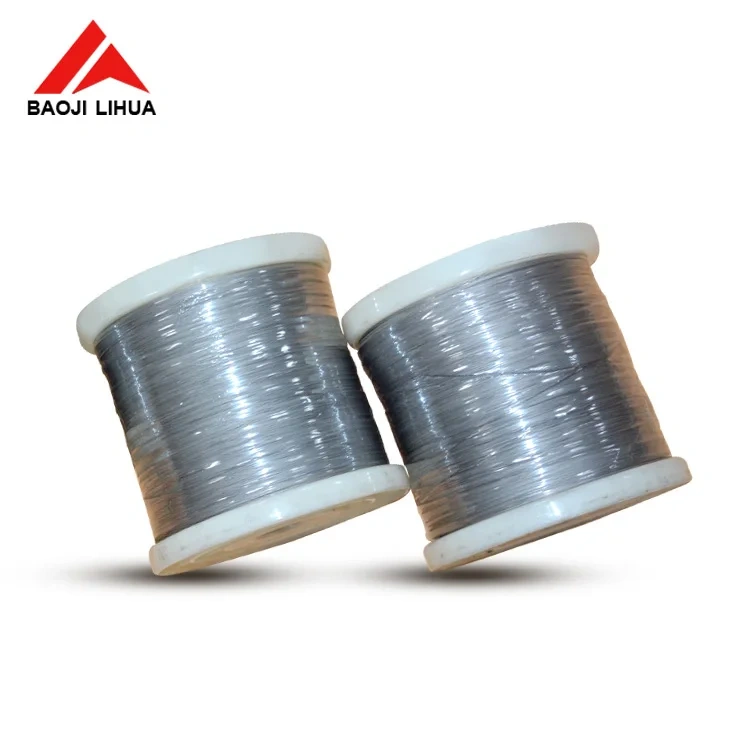

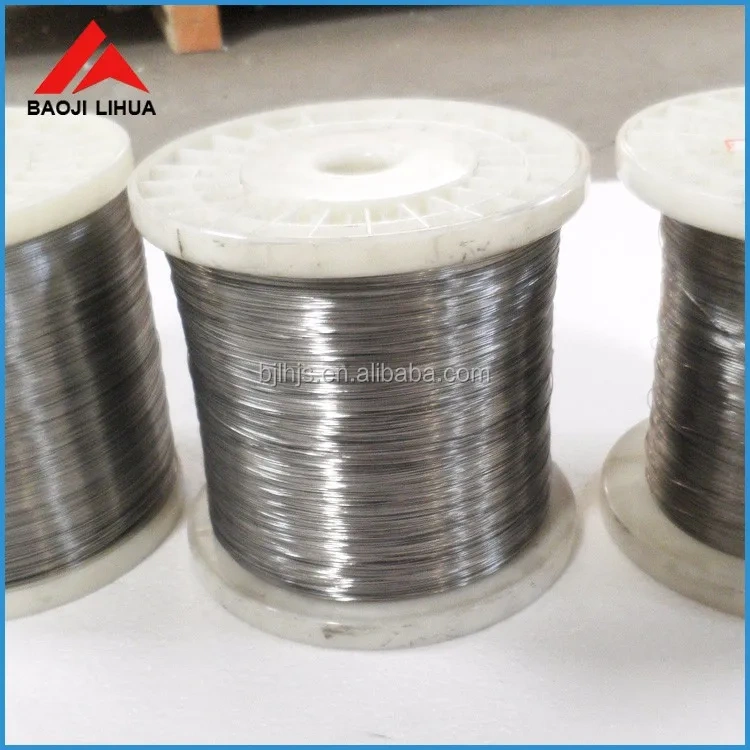

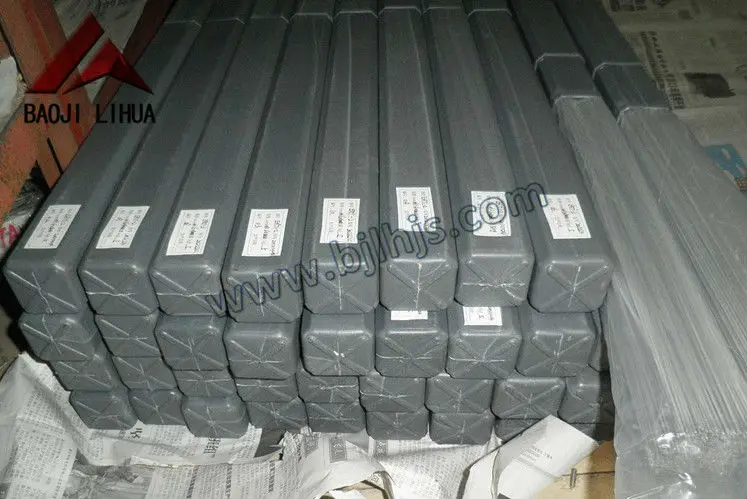

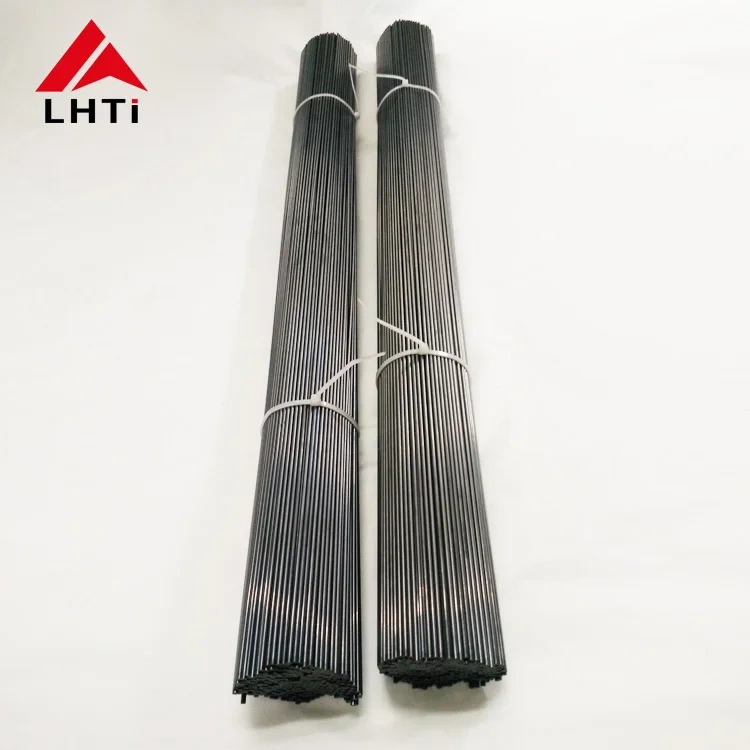

2>.Our welding wire picture for your ref.
3>. Guide to choise of filler metal for general purpose titanium welding
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | Comments | |||||||
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | ||||||||||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 | - | ||||||
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 | ERTI-1 is no longer recommended for Grade 2 in structural application | ||||||
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 | - | ||||||
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 | - | ||||||
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 | - | ||||||
4>. Chemical compostion requirements
| AWS | CHEMICAL SPECIFICATIONS | |||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd | |
| Number | ||||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - | |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - | |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - | |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - | |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 | |
5>. LiHua non-ferrous metals group ISO:
ERTI-5:
Grade 5(Ti6al4v),commononly called"6-4",is the most common and widerly used alloy grade due to its relatively low cost and good availability.It is a UTS of 130,000psi[895MPa]minimum,good weld-ability, and can be heat treated to a higher strength or toughness.Grade 5 is used in aircraft components such as landing gear,wing spars,and compressor blades,it is corrosion resistance is generally comparable to Grade 2 and its often used in corrosion serive where higher strength is required ,particularty in shafts,high strength bolting,and keys.
