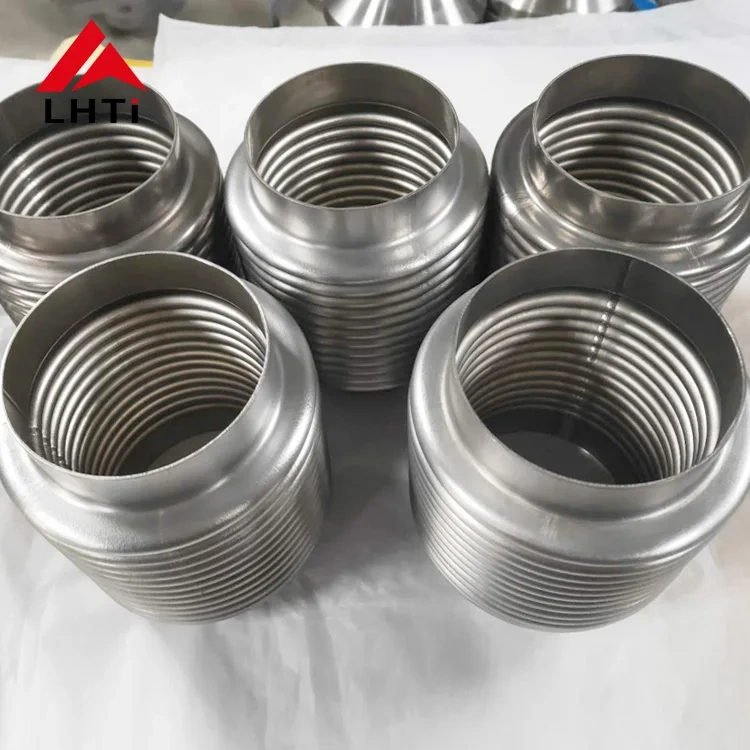

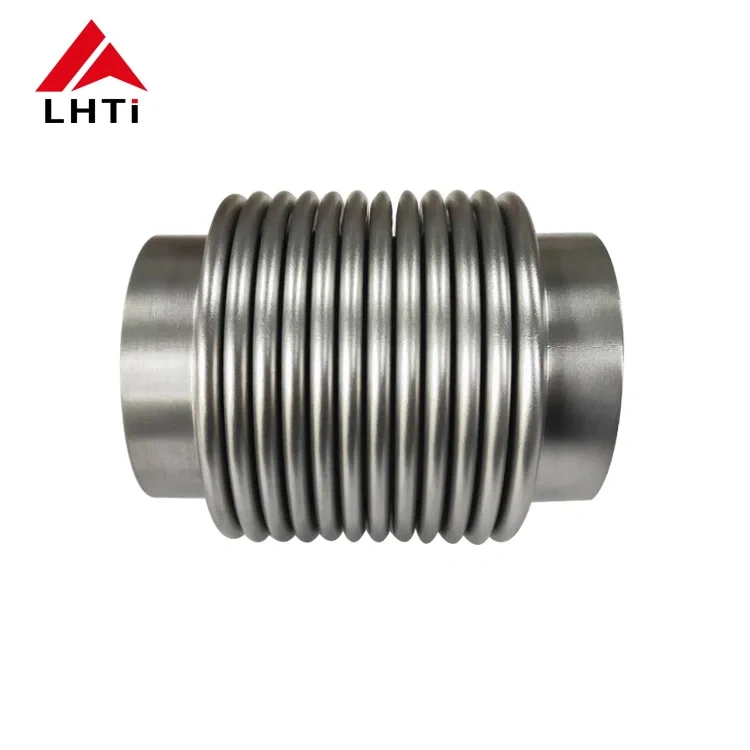

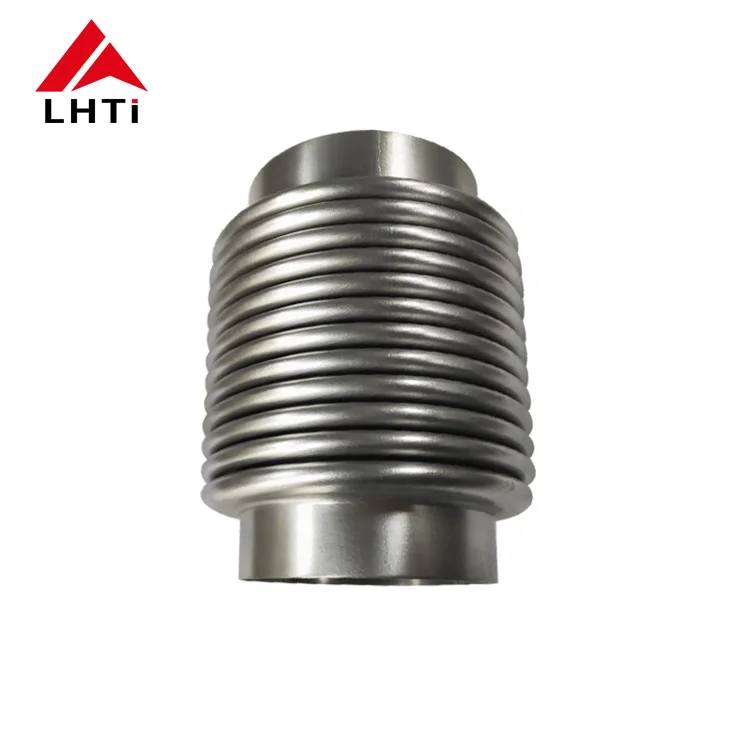

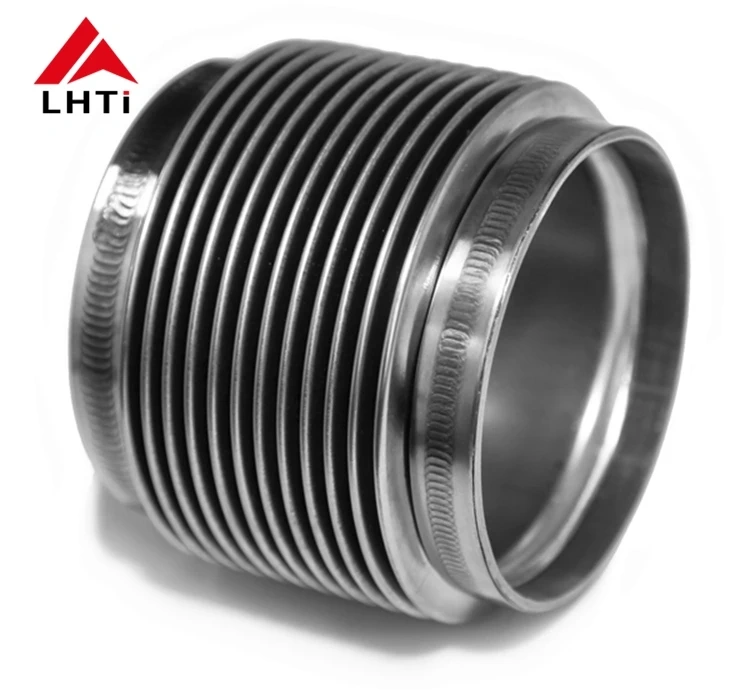

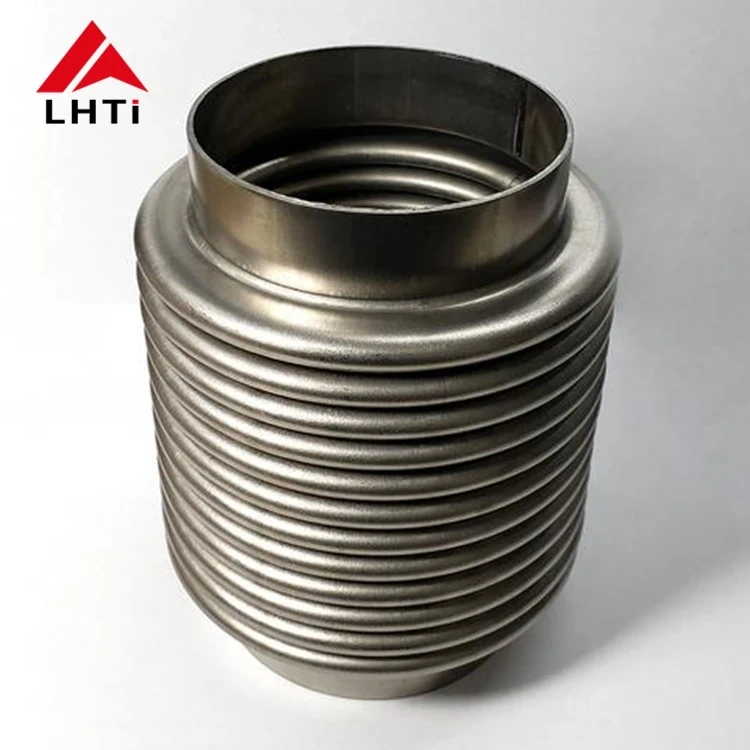

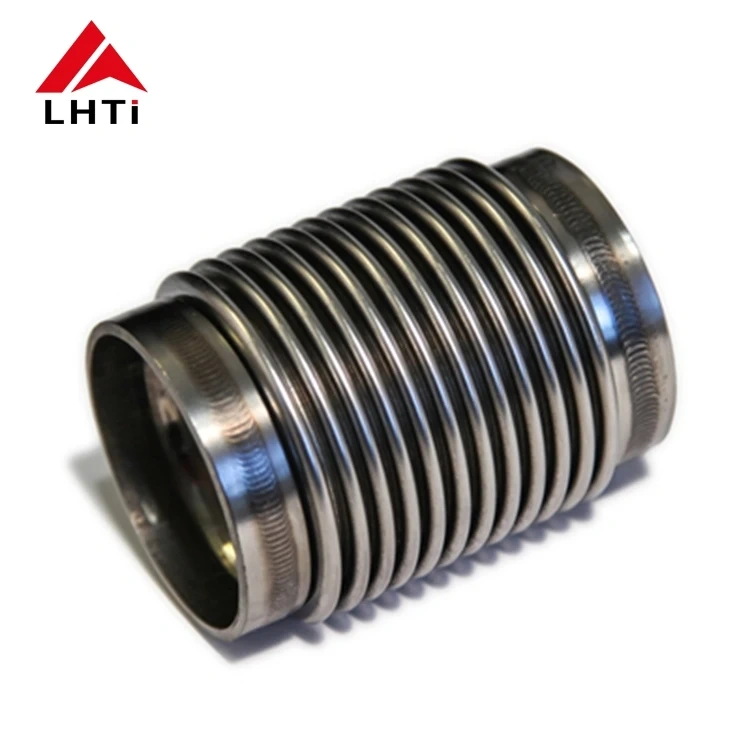

3" gr2 flex titanium exhaust pipe WT 1mm for exhaust system in stock
Material: pure Titanium
1.Titanium straight tubing stock
Seamless (SMLS)
OD 38 X WT 1.0mm x L 1000mm
OD 45 X WT 1.0mm x L 1000mm /OD45 X WT1.2mm x L1000mm
OD 51 X WT 1.0mm x L 1000mm
OD 60 X WT 1.0mm x L 1000mm
OD 63 X WT 1.0mm x L 1000mm /OD63 X WT1.2mm x L1000mm/ OD63 X WT1.5 X L1000mm
OD 70 X WT 1.0mm x L 1000mm
OD 76 X WT 1.0mm x L 1000mm /OD76 X WT1.2mm x L1000mm/OD76X WT1.5mmx L1000mm
OD 80 X WT 1.0mm x L 1000mm
OD 89 X WT 1.3mm x L 1000mm
Welded
OD 101.6 X WT 1.0 X L 1000mm/OD 101.6 X WT 1.2 X L 1000mm
OD 127.0 X WT 1.0 X L 1000mm
OD 152.4 X WT 1.0 X L 1000mm etc.

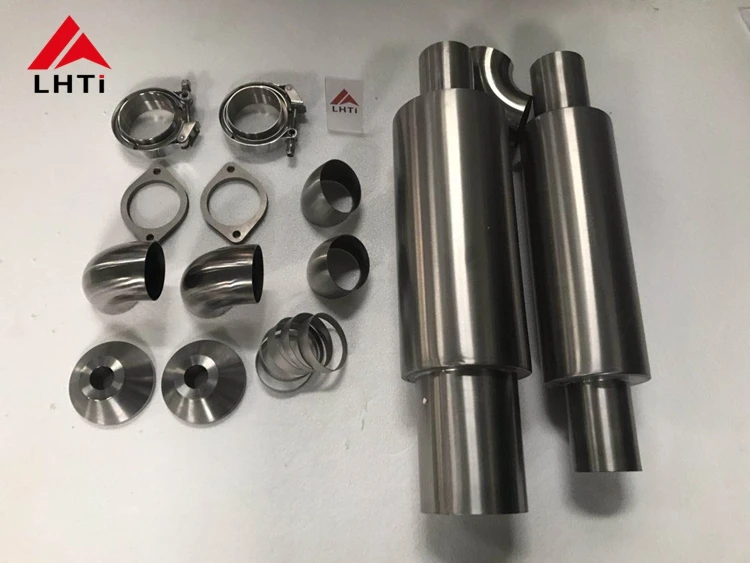

2. Suit product
1)Titanium welding rod , Dia 0.8/1.0/1.2/1.5/1.6mm x L 1000mm
2)V- band clamp (2pcs titanium gr2 flange + 1pc ss304 clamp)
3) elbow or bends , 45 / 90 degree 38/45/51/60/63/76/89mm in stock
4) 2 bolts exhaust flange, 1.5"/2.0"/2.5"/2.75"/3.0"/3.5" etc
5) Pie cuts, 9 degree, tight and loose radius,
6)perforated pipe, 1.5"/2.0"/2.5"/2.75"/3.0"/3.5" etc , 2.0mm holes, staggered line and straight line;
7) titanium hanger rod, Dia 10/12/15mm x L 1000mm
8)reducer, 3" to 2"/ 3" to 2.5/ 2.5" to 2"/ 3.5" to 3.0"/3.5" to 2.5"
9)muffler, 2.5" inlet and outlet; 3.0 inlet and outlet; 3.5 inlet and outlet etc
Mechanical Properties(>%) | |||||||
| Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) | ||||
| ksi | MPa | Min | Max | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| 1 | 35 | 240 | 25 | 170 | 45 | 310 | 24 |
| 2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 9 | 90 | 620 | 70 | 483 | - | - | 15C |
| 12 | 70 | 483 | 50 | 345 | - | - | 18C |
1.ISO9001:2008
2.Timely delivery rate is 99.8%,sometimes in advance.
3.Excellent after sale service.
4.Rapid enquiry reply,within 2 hours.
5.Fair payment term
6.Proffessional technical adviser
7.Material certificate
8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process,surface treatment,inspectation and testing).
