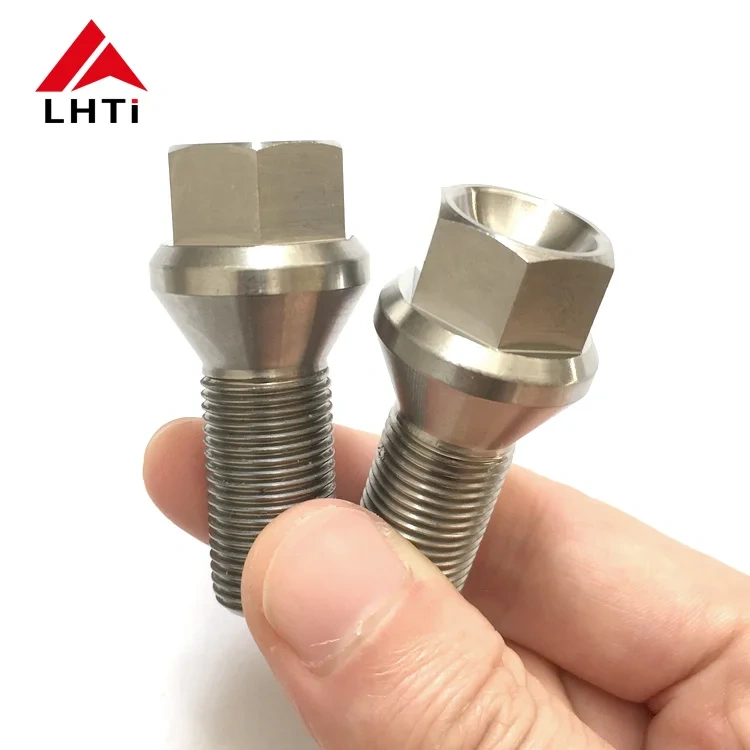

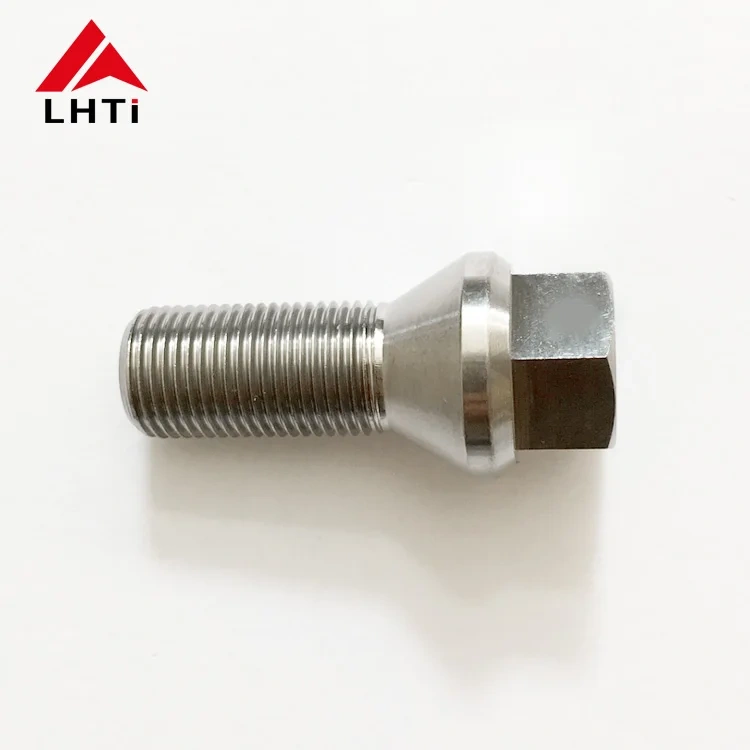

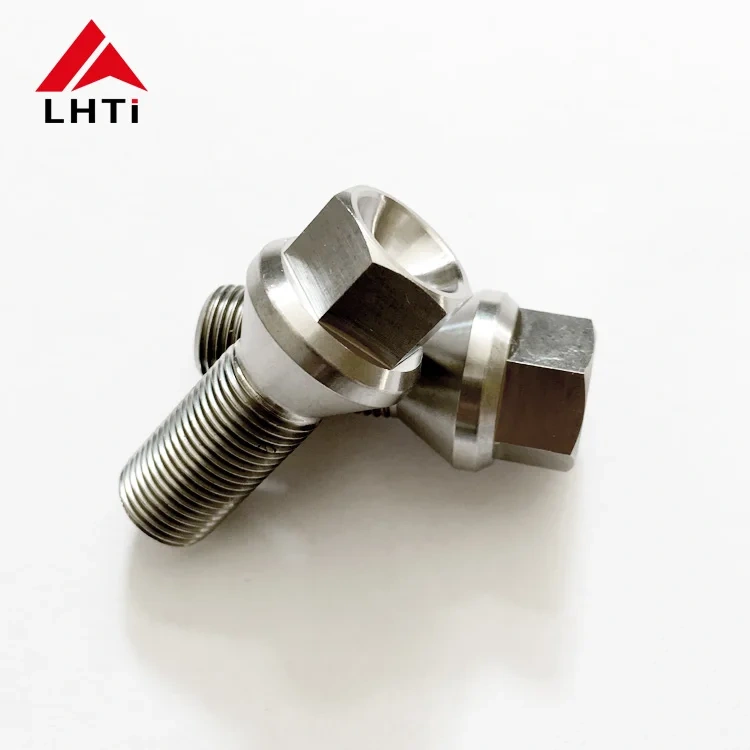

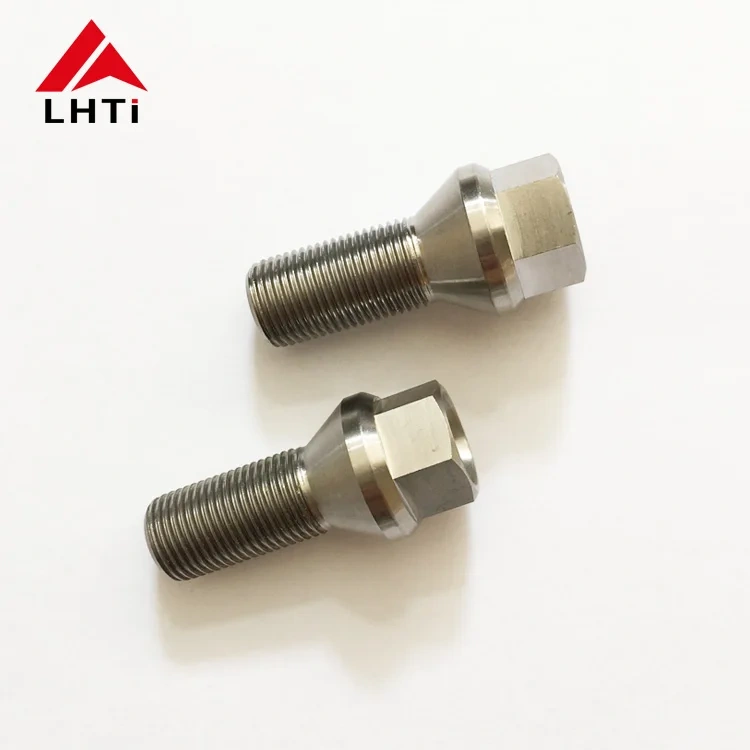

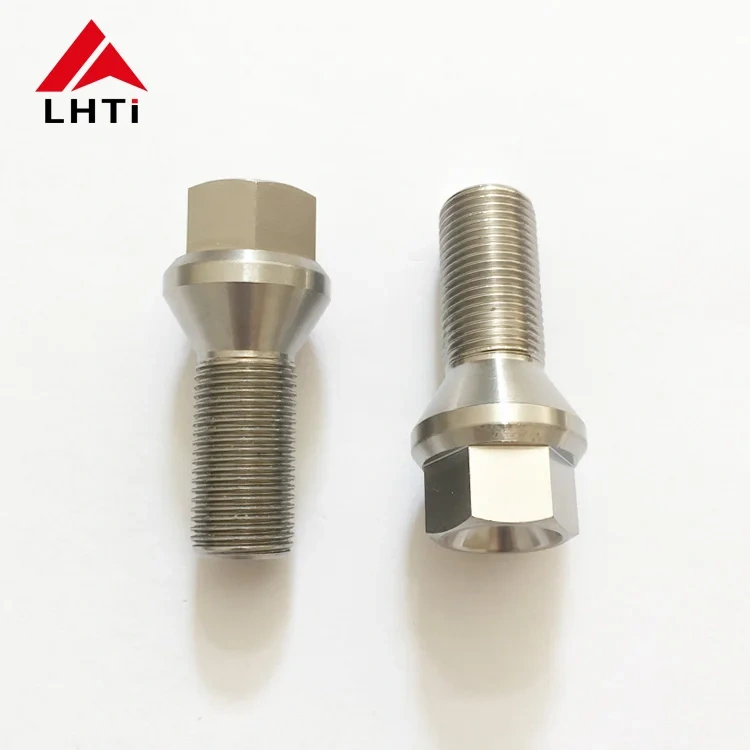

M14 x 1.25 x 28mm gr5 Titanium Wheel hub bolt lug bolt for car
Item Name | M14 x 1.25 x 28mm gr5 Titanium Wheel hub bolt lug bolt for car |
Material | Titanium Alloy |
Grade |
GR5 (Ti-6AL-4V), |
| Specification | M14 x 1.25 x 28mm |

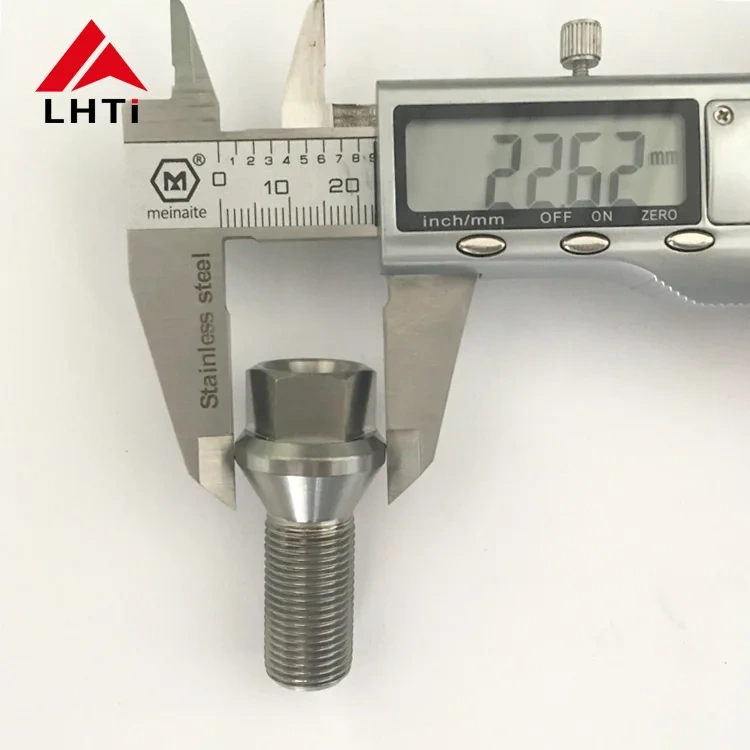

Dc=22.5mm, hex=17mm, total length 49mm, 60degree taper seat | |
Standard | non |
Surface Treatment | Polishing, Milling, Anodised Gold, Blue, Green, Purple , Black,rainbow etc |
| Features | Light Weight, Excellent Resistance, Anti-Corrosion, Excellent Mechanical Strength etc. |
| Applications | motorcycle, auto, etc. |
| Test and Quality |
1. ISO 9001:2008 |
Payment | T/T, L/C, Westener Union, MoneyGram, Paypal |
Mechanical info about our Ti alloy bolts | |
| Thread | Rolled thread for better fatigue resistance and avoid galling, Instead of cut thread |
| Tensile strength | Heat treated to 950Mpa~1000Mpa |
| Yield strength | 870Mpa~925Mpa (126,000psi~134,000psi) |
| Hardness | 30 HRC-40HRC |
| Shear strength | 500Mpa~550Mpa |
| Elongation | 14%~18% |
| Working temp | Up to 500°c |
FAQ |
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? --Sure. |
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? --Yes, Please click here. http://www.lihua-group.com (Independent website) |
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
