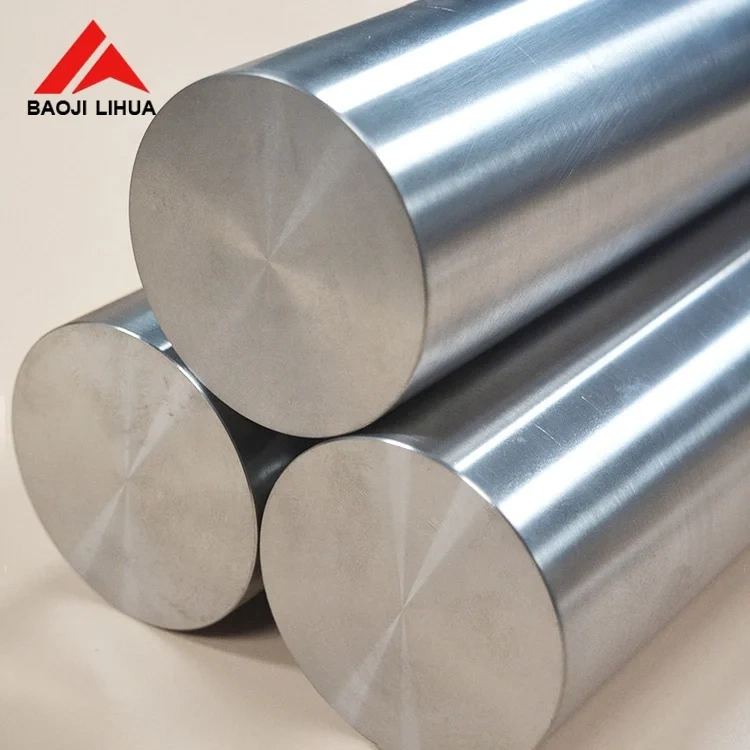

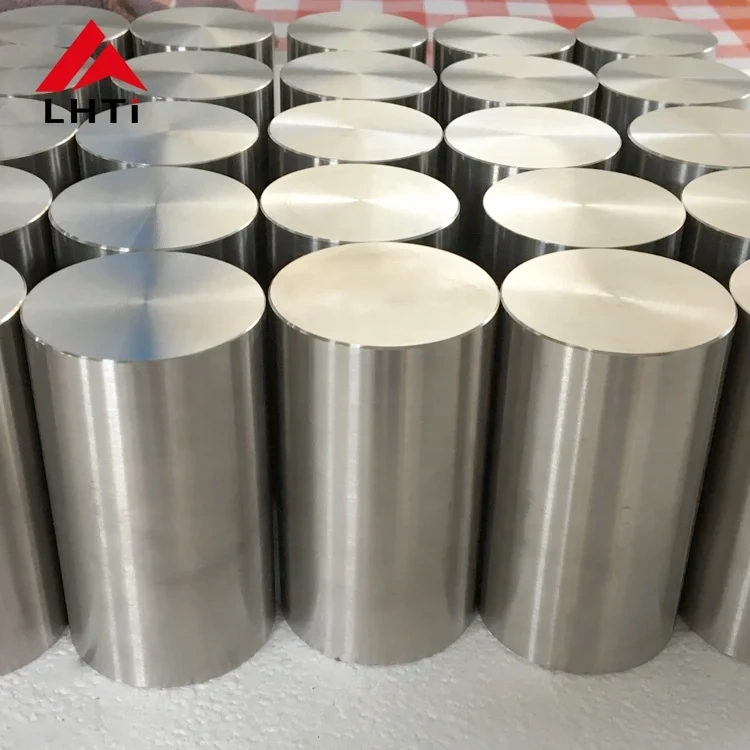

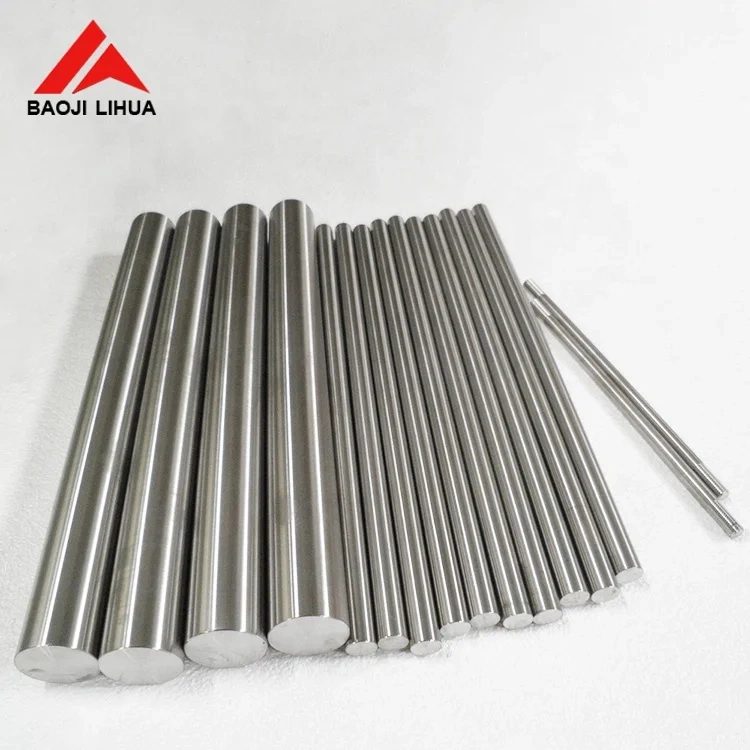

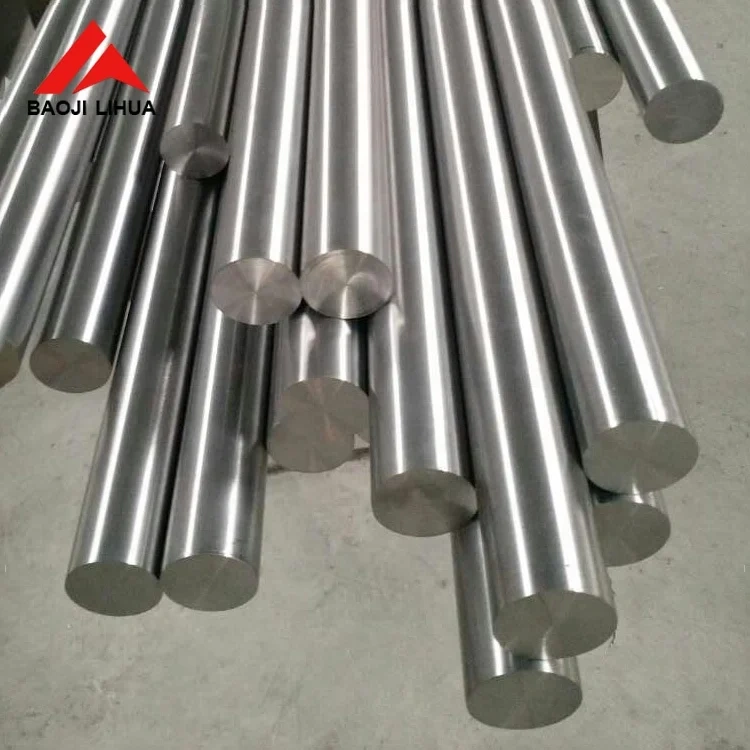

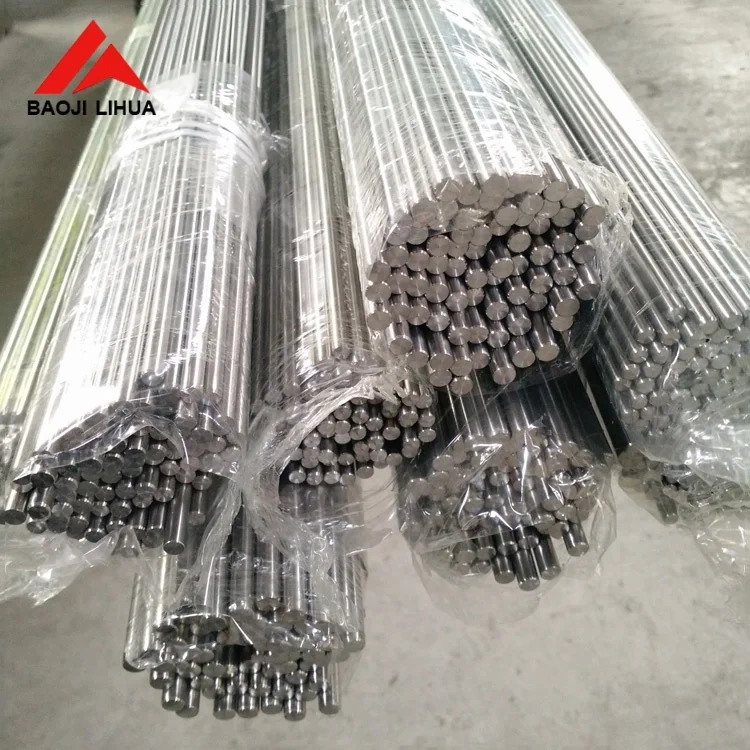

Round Titanium Rod Ti6Al4V GR.5 Titanium Bar Price per Kg
Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136
Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc.
Russian Grade: BT1-100,BT1-0,BT6 etc.
Shape: Round, Square, Flat, Hex
Diameter: 3-350mm
Length: up to 6000mm, random length is also ok and the price is lower
Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements
Surface: Polishing, Pickling, Sand Blasting
Condition: R/M/Y
Features: 1. Not any defects free from cracks no pitting.
2. Two ends flatting making sure length tolerance and good looking.
Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

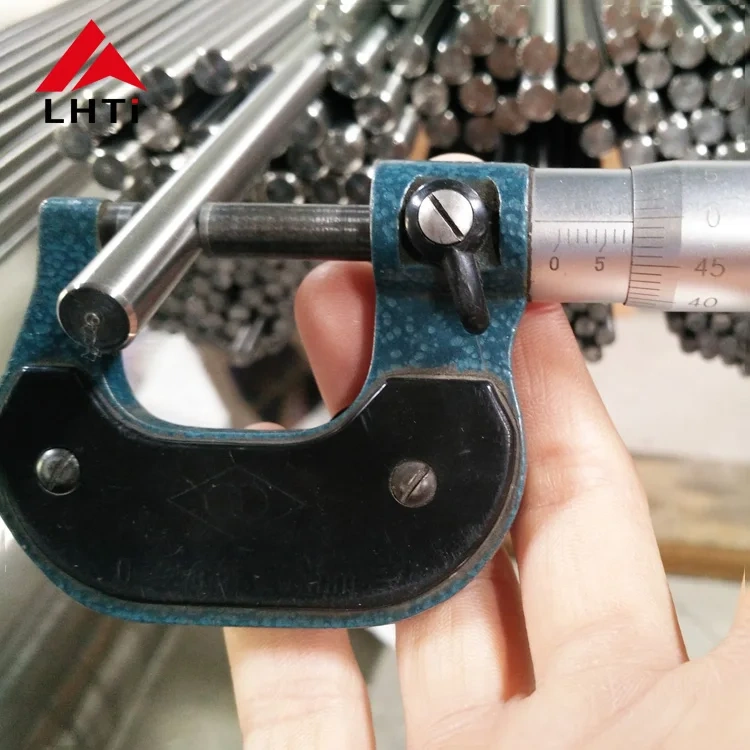

Tolerance
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) | |||||||
FAQ |
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard). --We make 100% inspection before shipment. -- Company certificate:ISO 9001:2008 ;products certificate:EN10204/3.1 |
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? --Sure. |
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? --Yes, Please click here. http://www.lihua-group.com (Independent website) |
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
