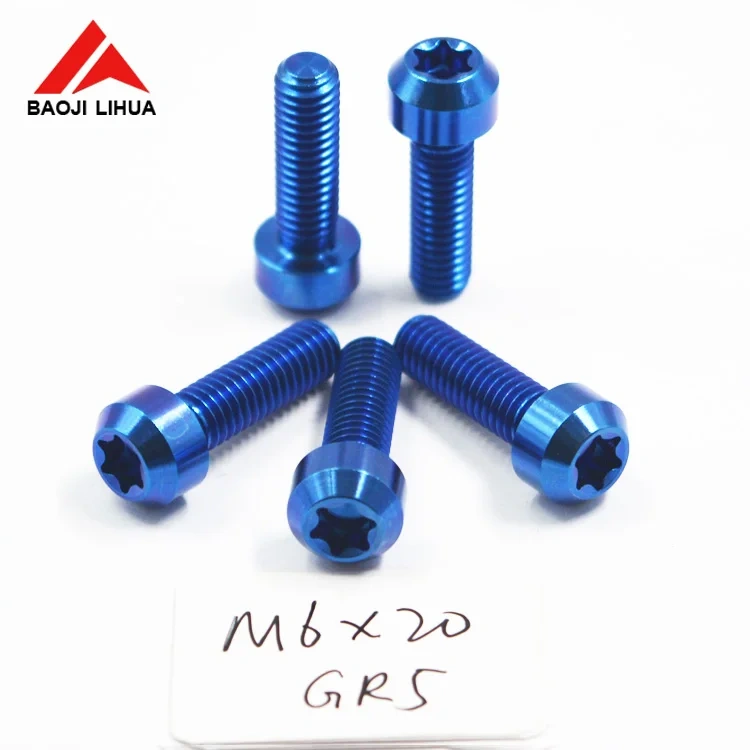

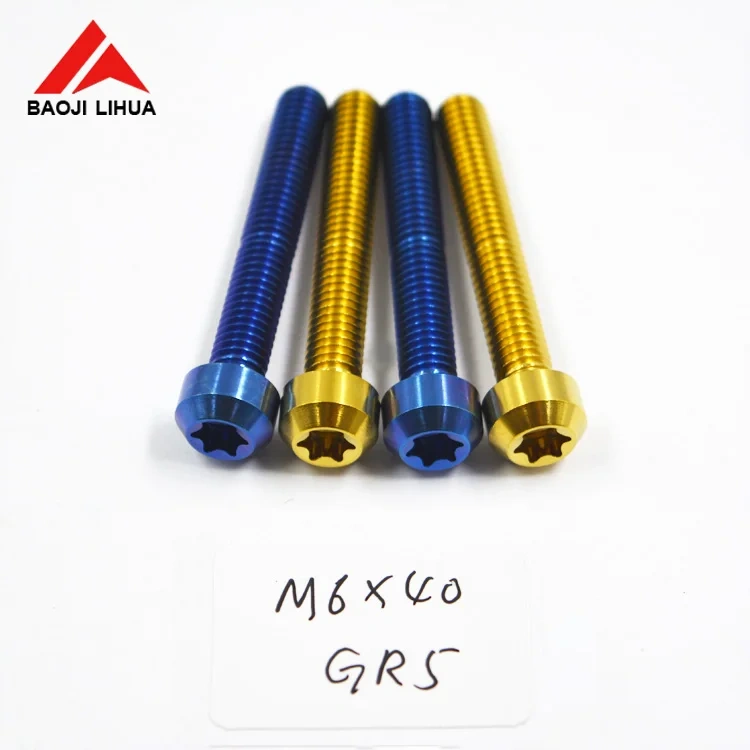

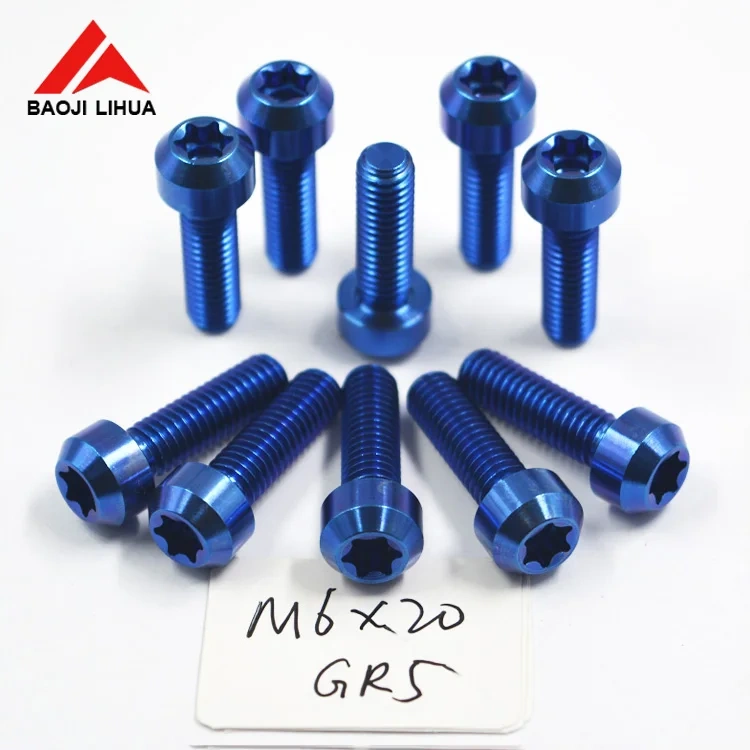

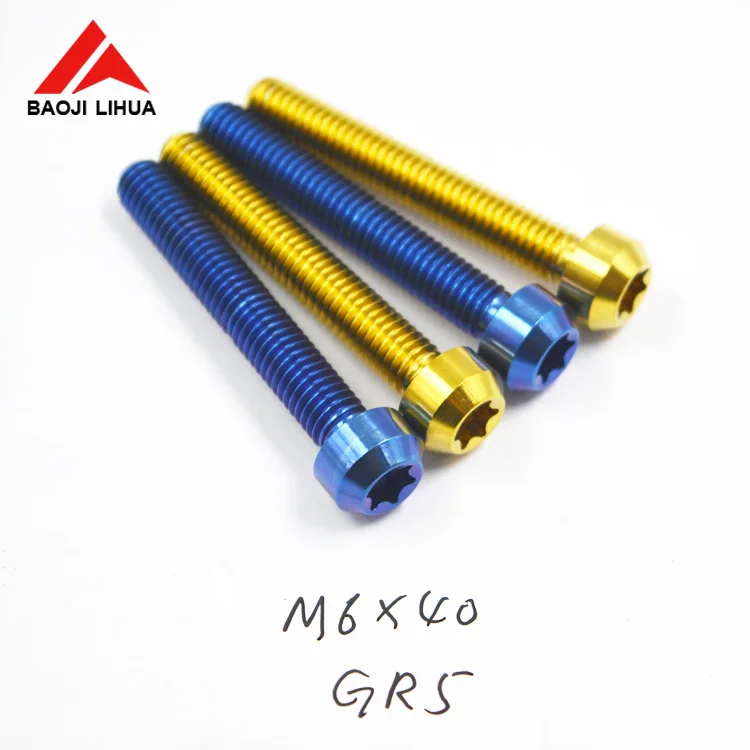

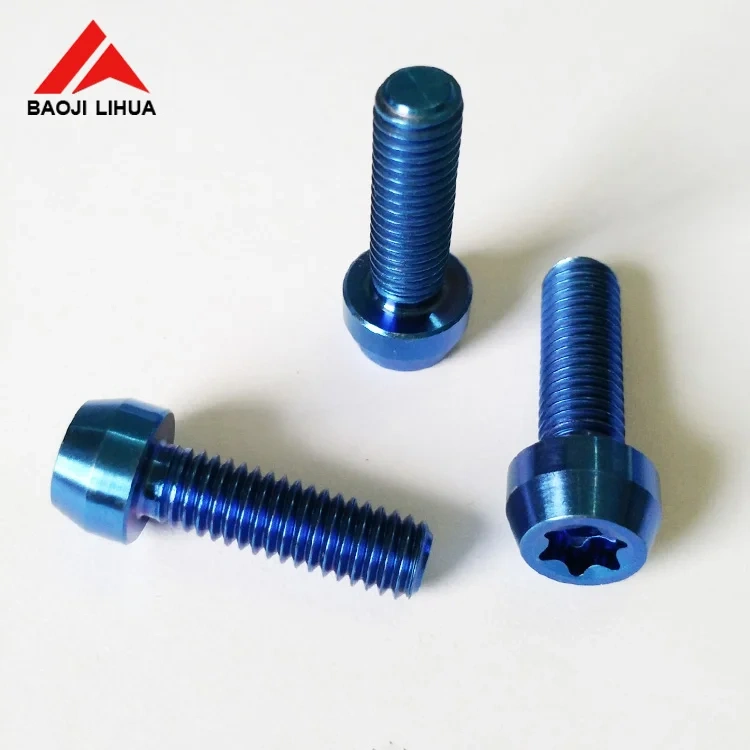

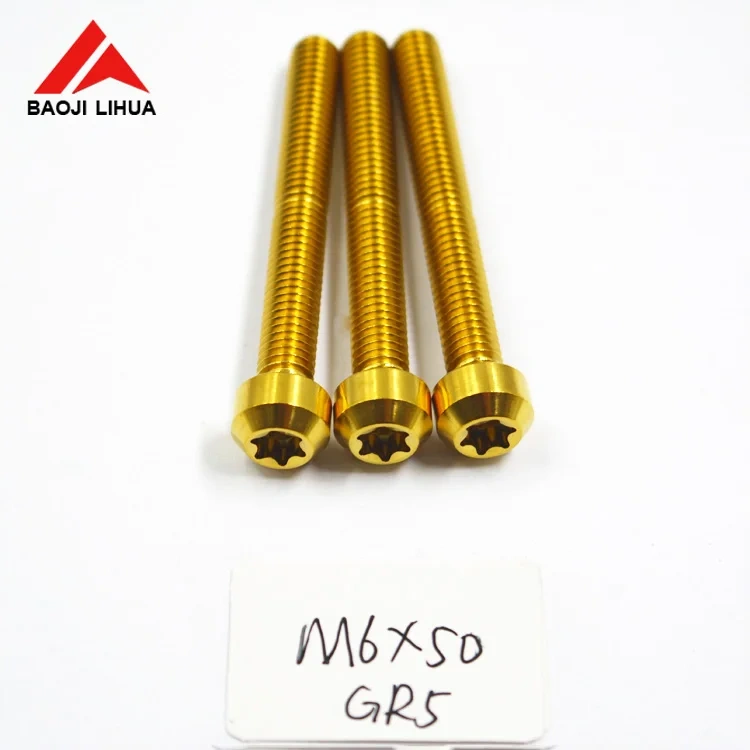

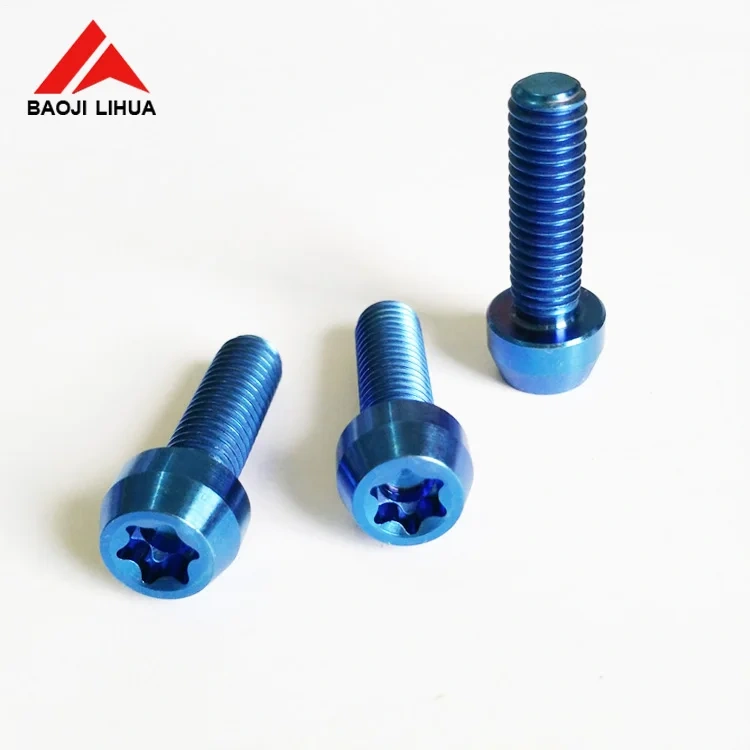

Grade5 M6 M8 Titanium star key bolt screw for Scooter
Item:Grade5 M6 M8 Titanium star key bolt screw for Scooter
Material:Titanium Alloy
Grade:GR5 (Ti-6AL-4V),
Specification BOLT: M6,M8,M10, Length =15/20/25/30/35/40mm etc
Supply non-standard and special size according to customer's requirement
Color: Anodised Gold, Blue, Green, Purple , Black,rainbow etc
Features Light Weight, Excellent Resistance, Anti-Corrosion, Excellent Mechanical Strength etc.
Applications:motorcycle,scooter auto etc
| Gr5(Ti6Al4V) | ||||
| Chemical compositions(weight%,<=) | ||||
| Ti | Al | V | Fe | C |
| Reminder | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 |
| N | H | O | Other(total) | |
| 0.05 | 0.015 | 0.2 | 0.4 | |
Physical properties(>=) | ||||
Σb Tensile Strength (Mpa) | Ïr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | Ï Reduction of area (%) | |
| 895 | 825 | 10 | 25 | |
