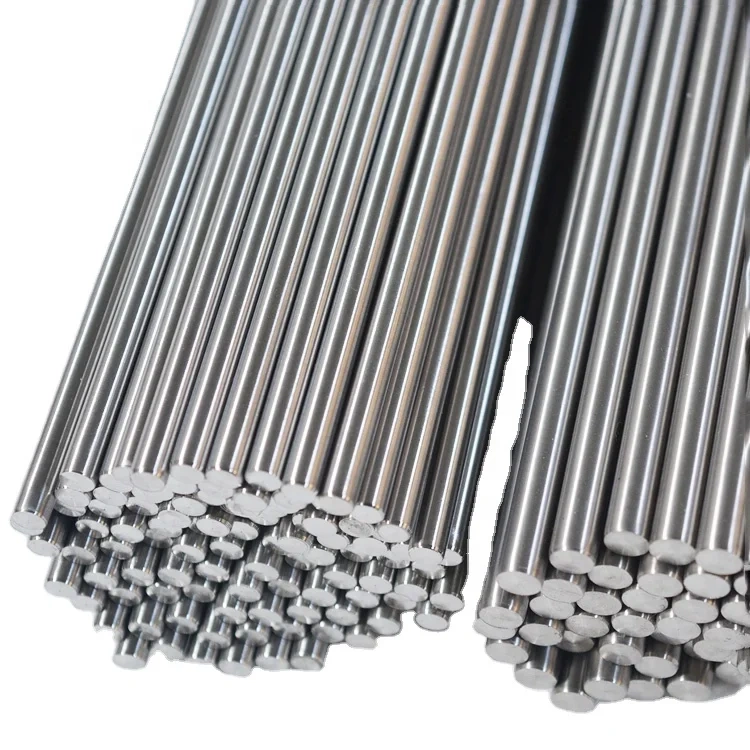

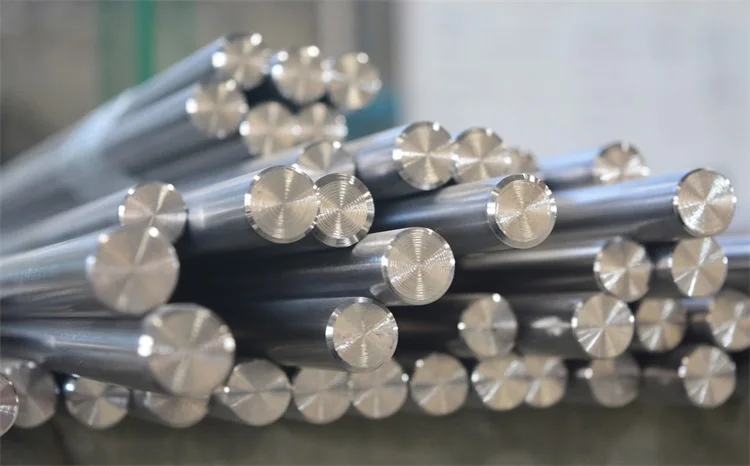

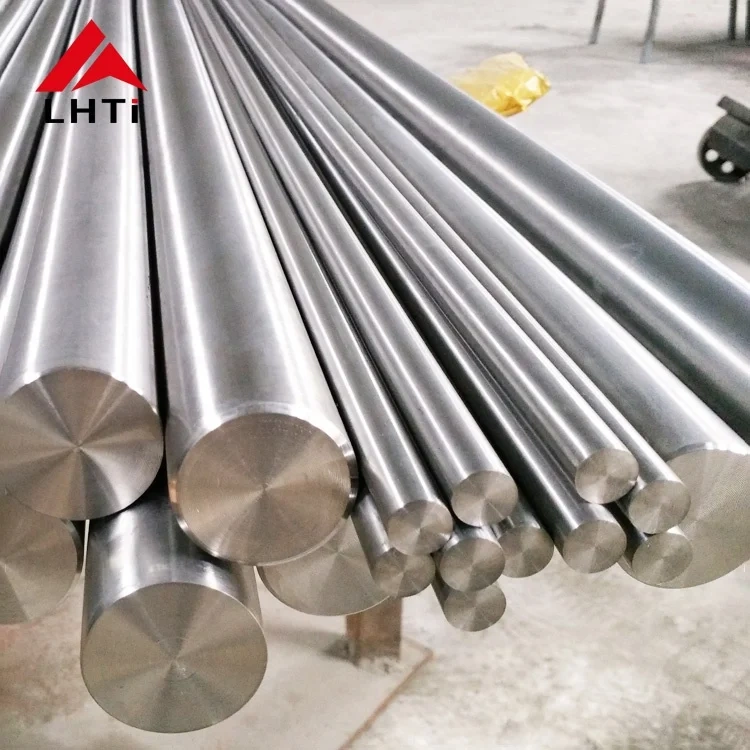

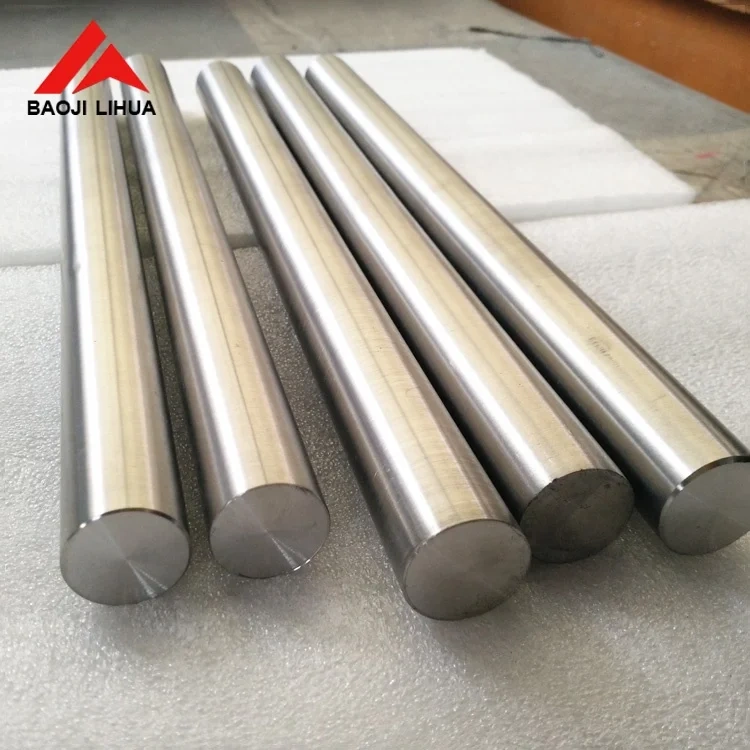

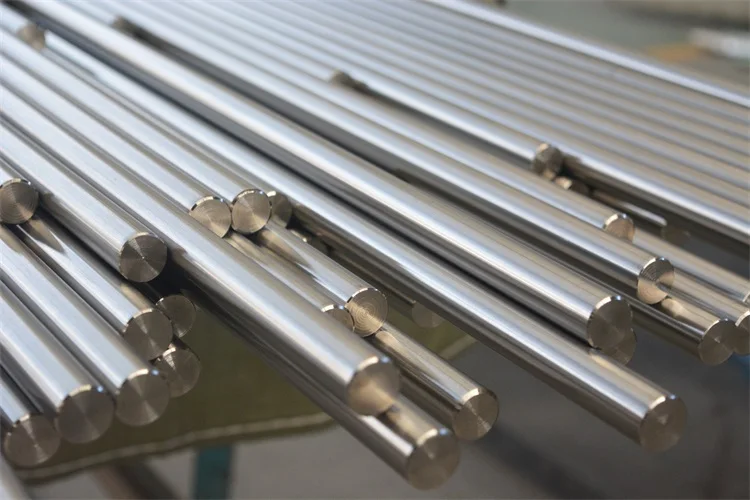

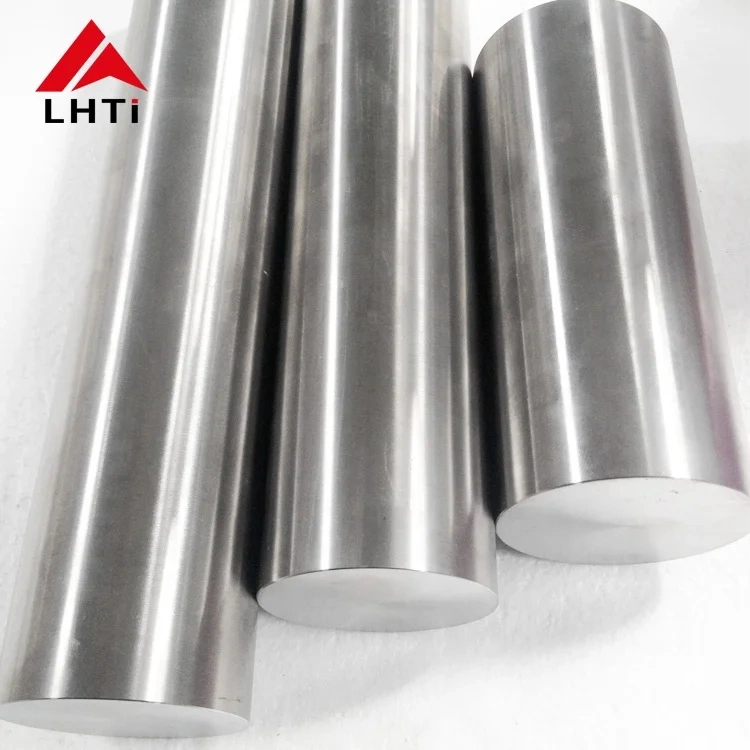

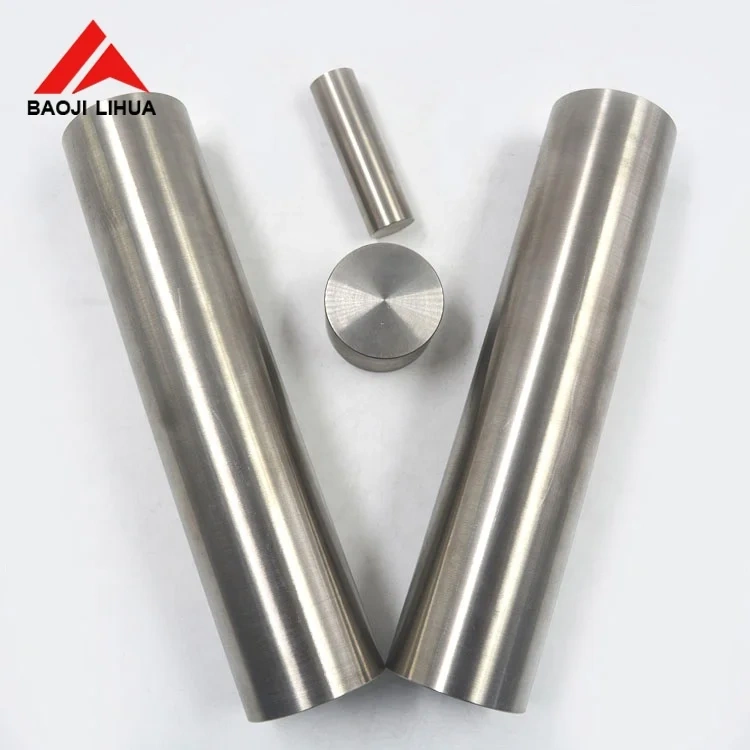

Titanium round bar Gr1 Gr2 Gr5 solid titanium rod
Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136
Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc.
Russian Grade: BT1-100,BT1-0,BT6 etc.
Shape: Round, Square, Flat, Hex
Diameter: 3-350mm
Length: up to 6000mm, random length is also ok and the price is lower
Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements

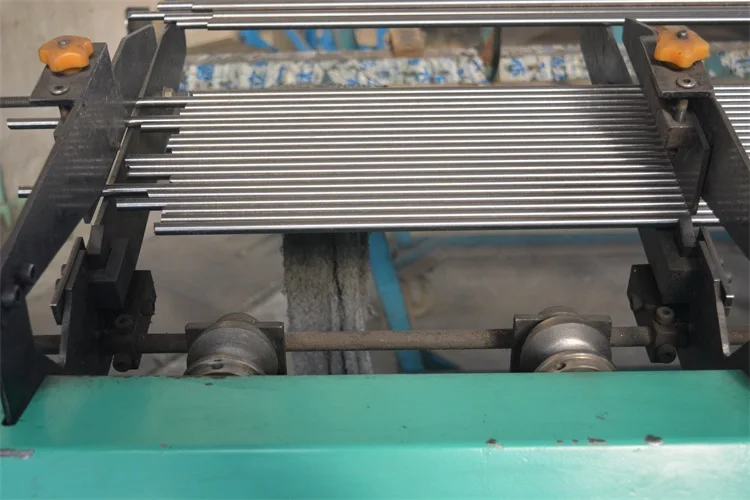

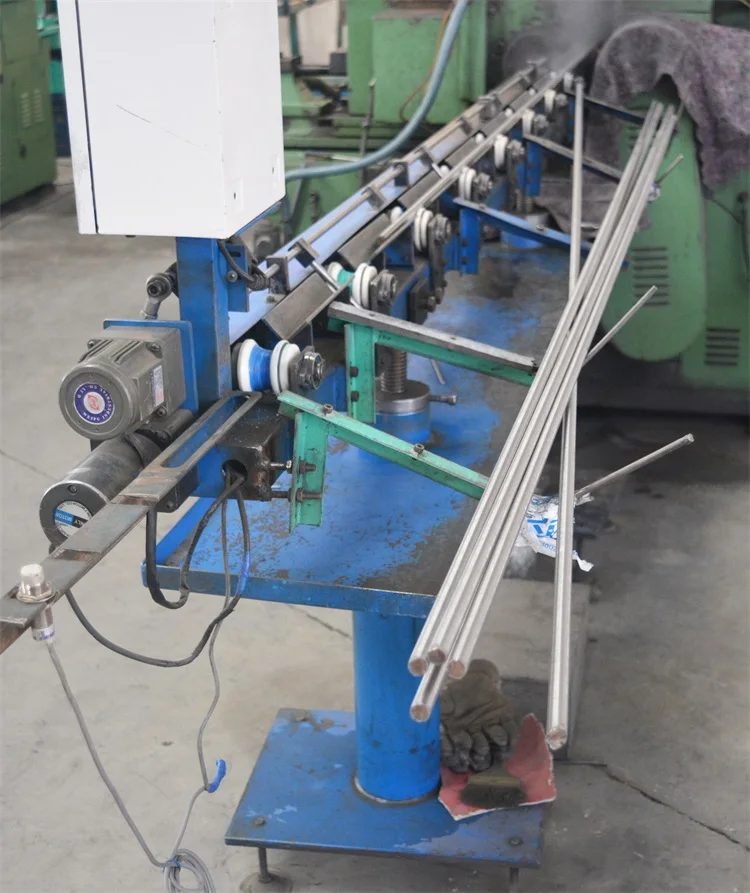

Surface: Polishing, Pickling, Sand Blasting
Condition: R/M/Y
Features: 1. Not any defects free from cracks no pitting.
2. Two ends flatting making sure length tolerance and good looking.
Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

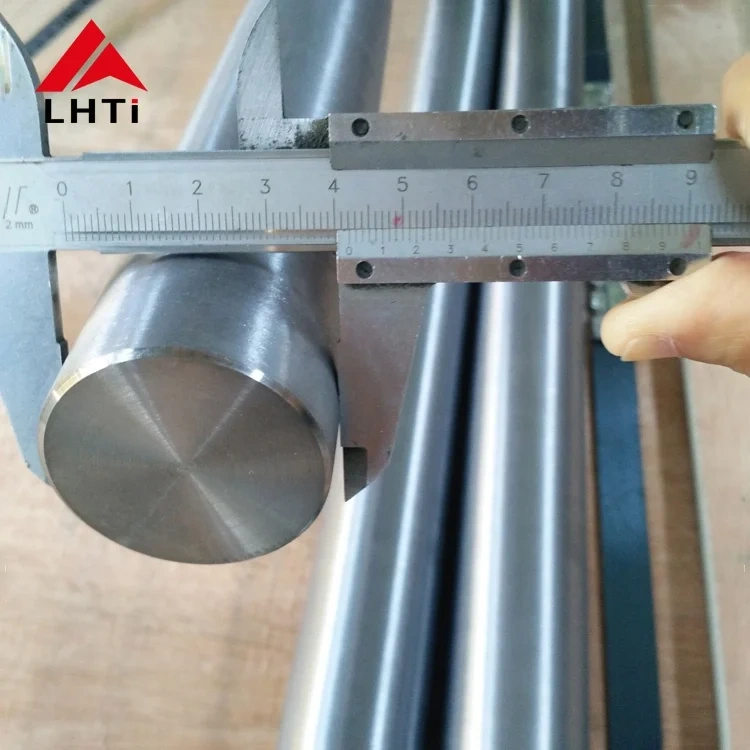

Tolerance
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) | |||||||
