TC21 Titanium plate Ti sheet price per kg
TC21: Ti-6Al-2Mo-1.5Cr-2Zr-2Sn-2Nb
1>.Stock sheet,standard size 1000*2000,cutting size welcome.
| Grade | Standard | Manufacturing process | Size(mm) | Importance | |||||
| Thickness | Width | length | |||||||
Gr1.Gr2.Gr4. Gr5.Gr7.Gr9
| ASTMB265 AMS4902 AMS4901 AMS4911 | Hot rolling | 4.0~30 | 1000 | 2000 | 1.Customized size welcome 2.Big sheet/plate in Gr1&Gr2 available size 4~15*2000*6000mm | |||
| Cold rolling | 0.50~4.0 | 1000 | 2000 | ||||||

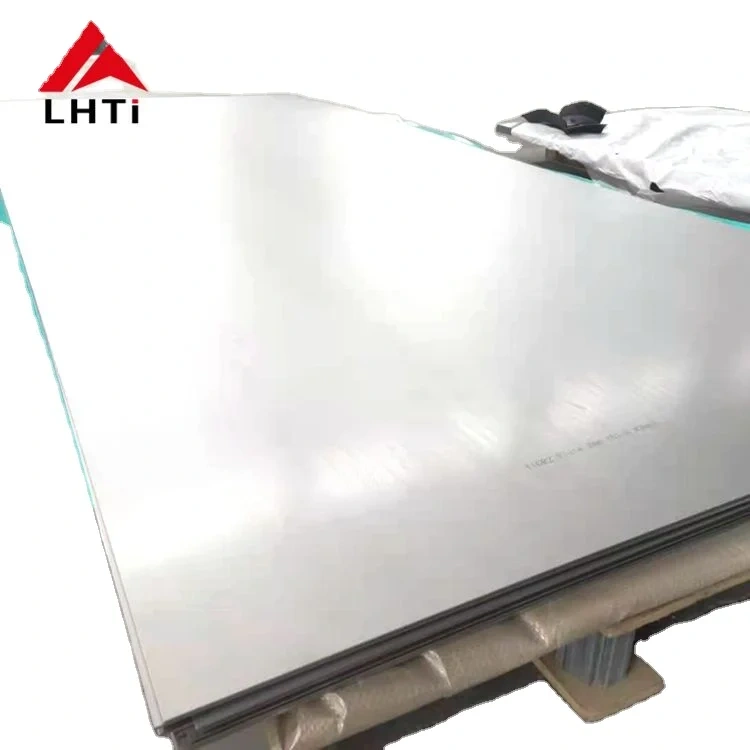

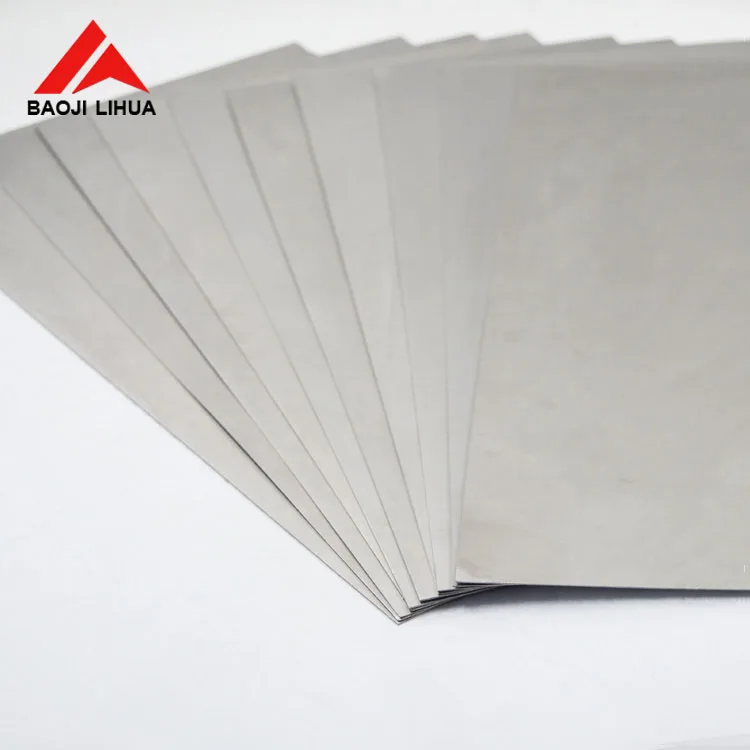

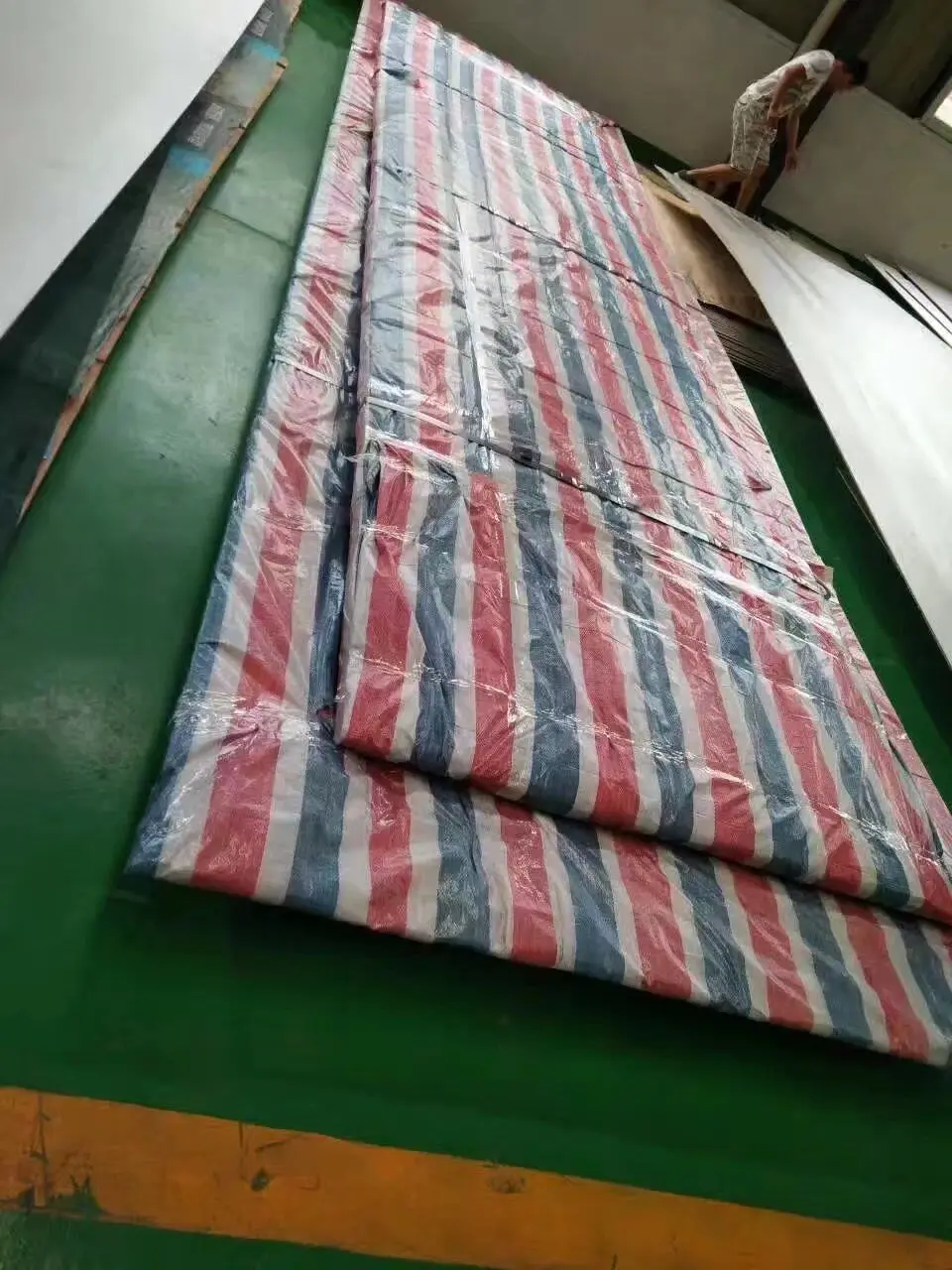

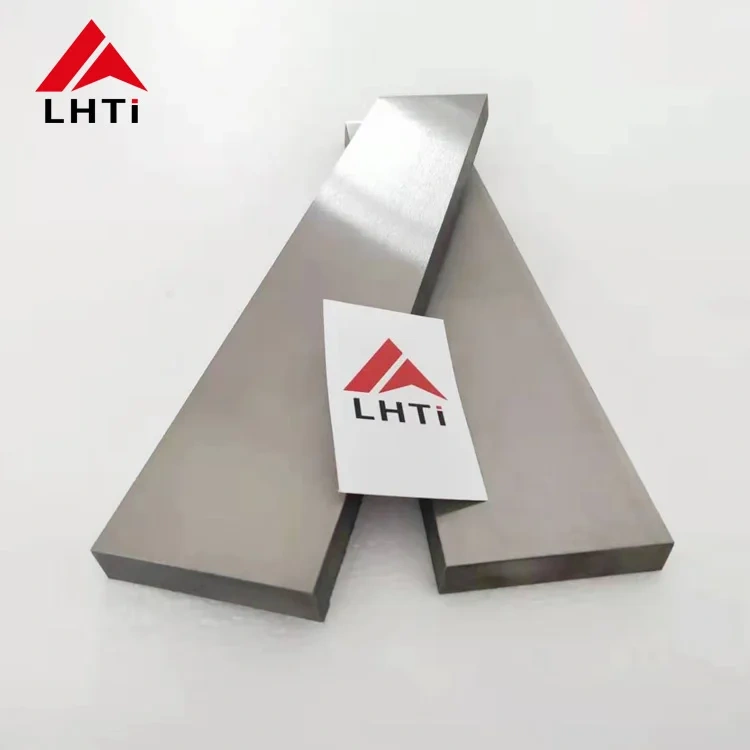

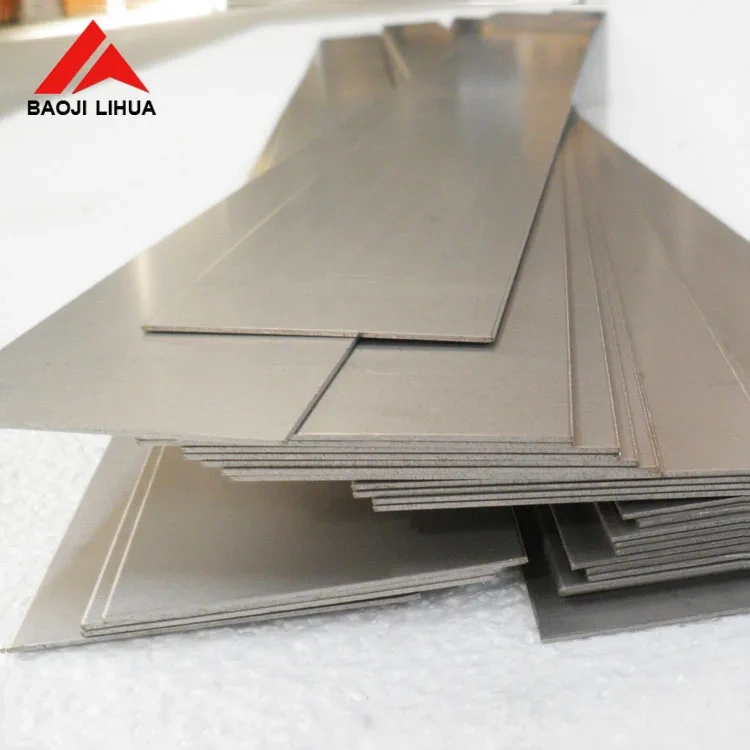

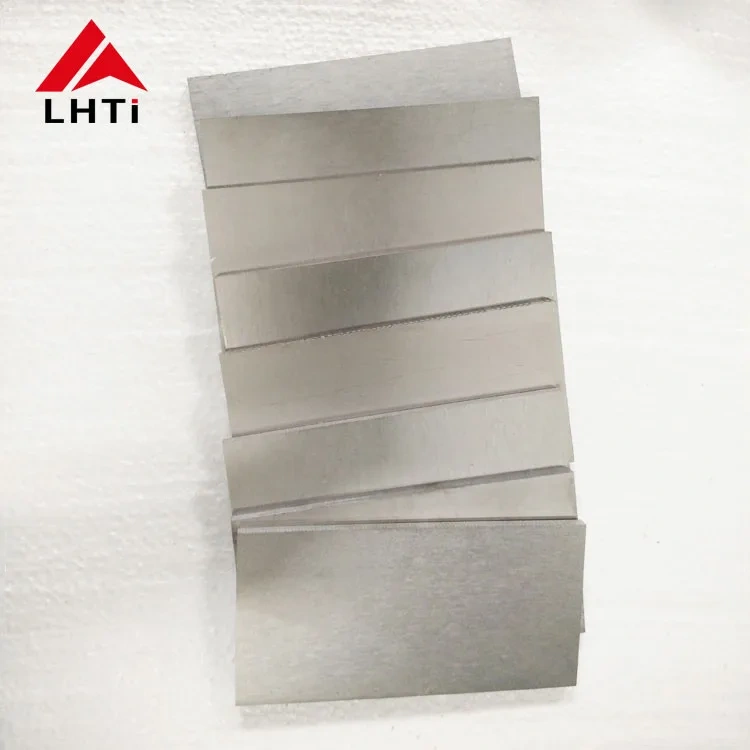

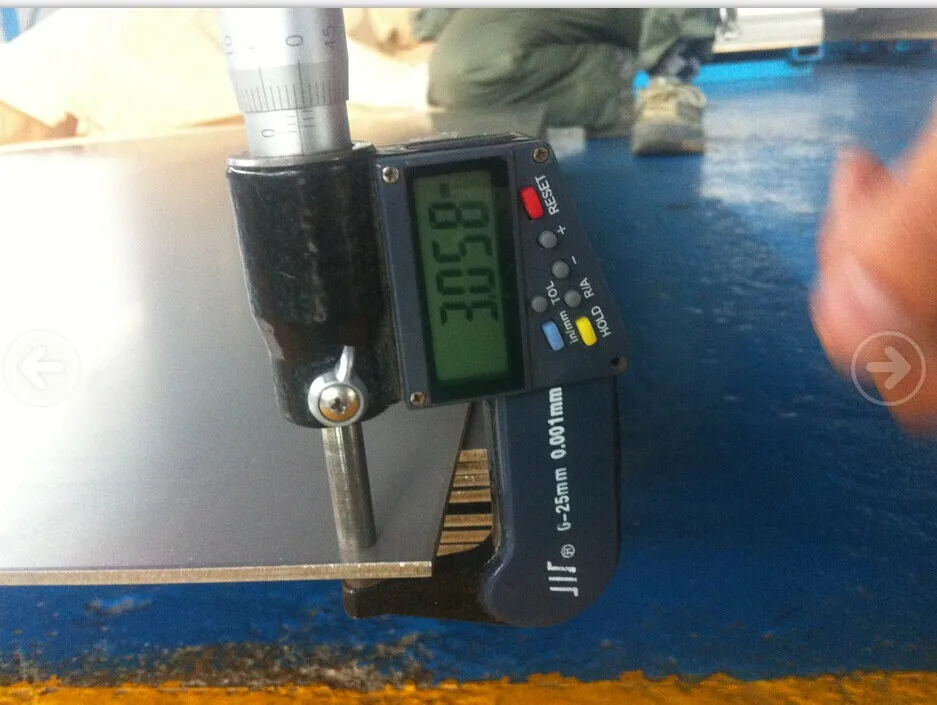

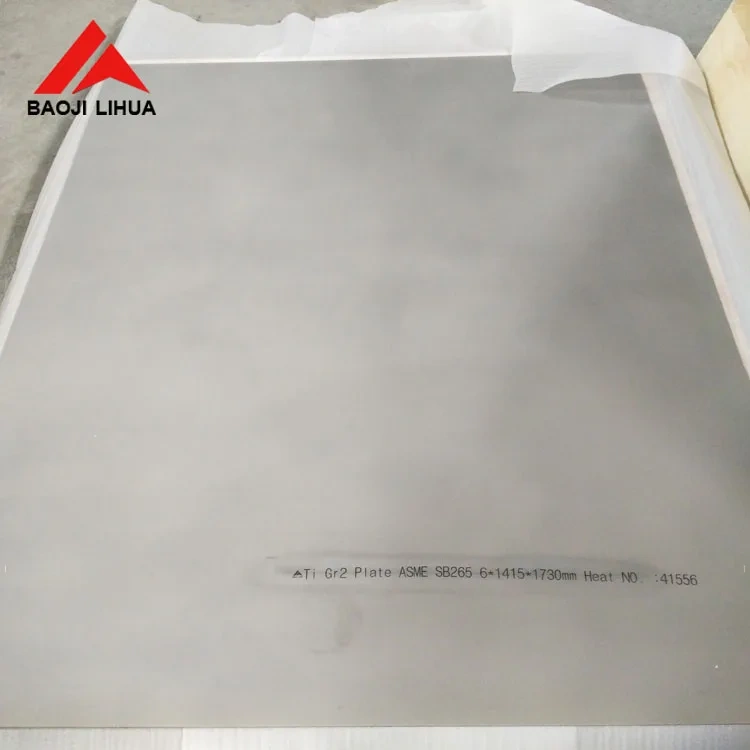

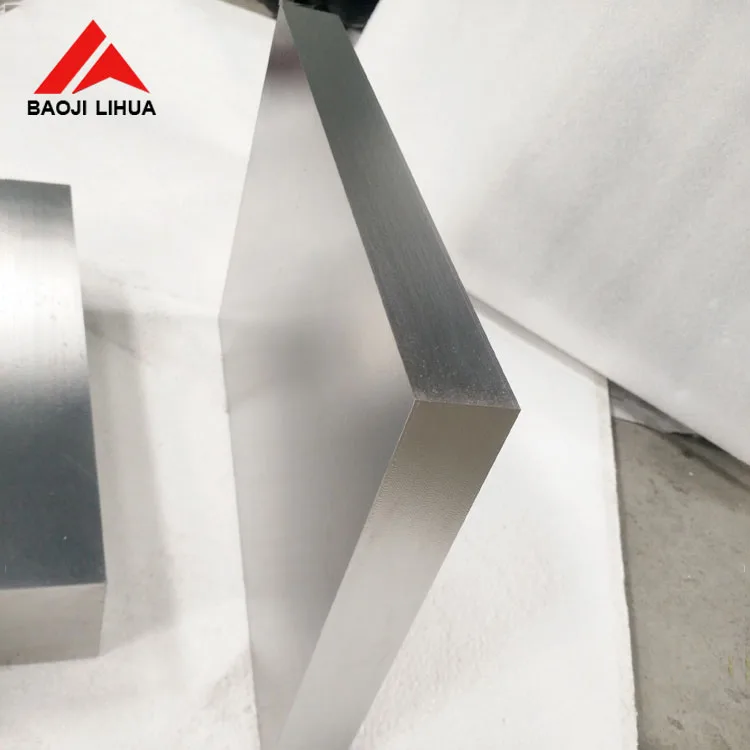

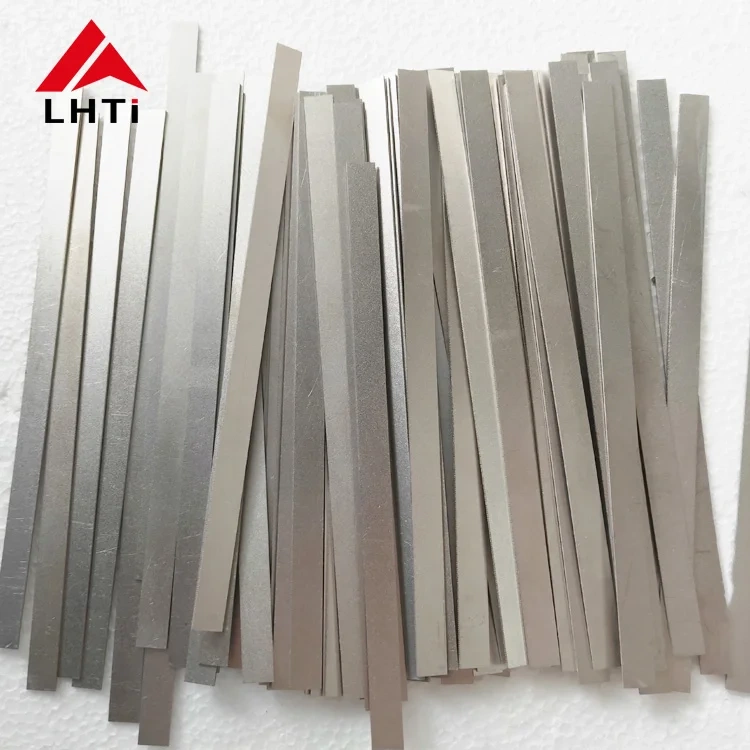

2>TItanium sheet pictures:
3>.Mechanical Properties.
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation % | ||||
| ksi | Mpa | ksi | Mpa | |||||
| Gr1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 24 | ||
| Gr2 | Unalloyed Ti ("Pure") 50A -CP2 | 50 | 345 | 40 | 275 | 20 | ||
| Gr4 | Unalloyed Ti ("Pure") 80A -CP4 | 80 | 550 | 70 | 483 | 15 | ||
| Gr5 | Ti 6Al 4V | 130 | 895 | 120 | 828 | 10E | ||
| Gr7 | T-50A 0.15Pd | 50 | 345 | 40 | 275 | 20 | ||
| Gr9 | Ti 3Al 2.5V | 90 | 620 | 70 | 483 | 15F | ||
