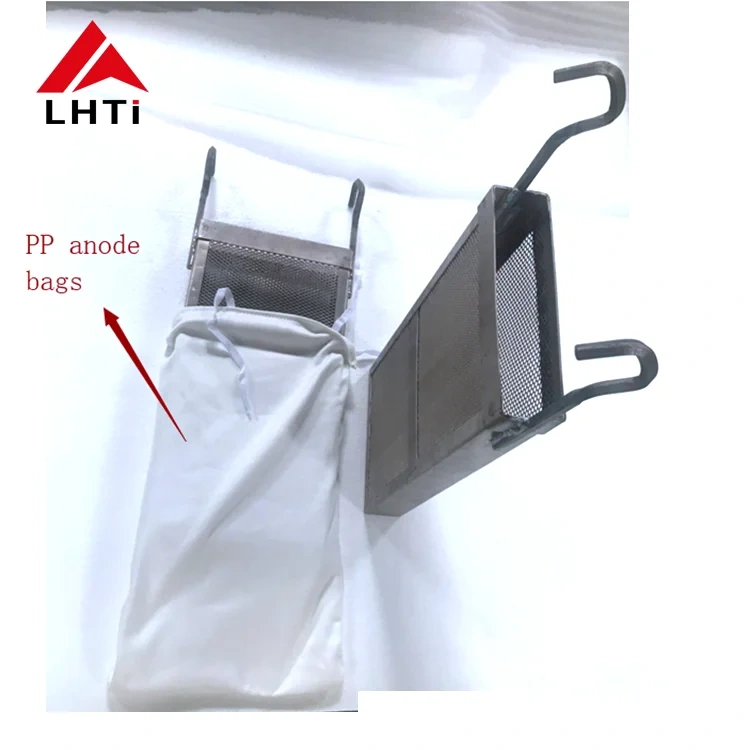

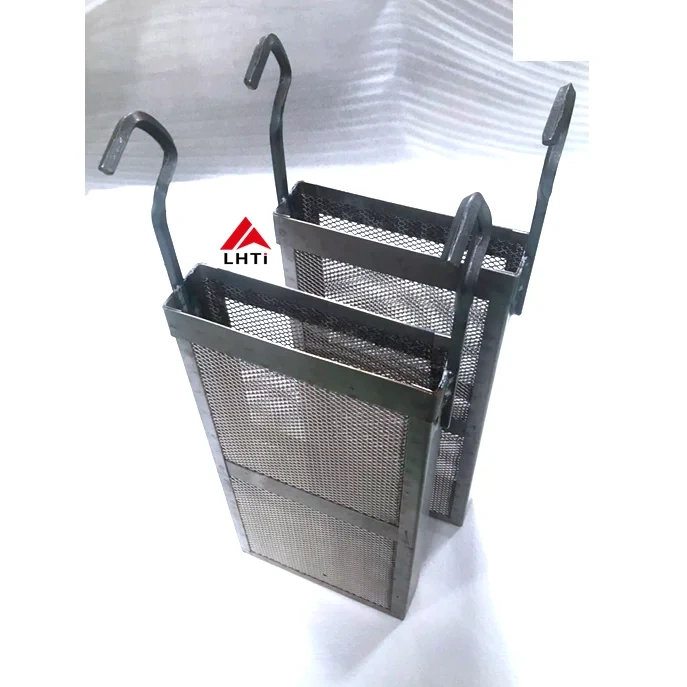

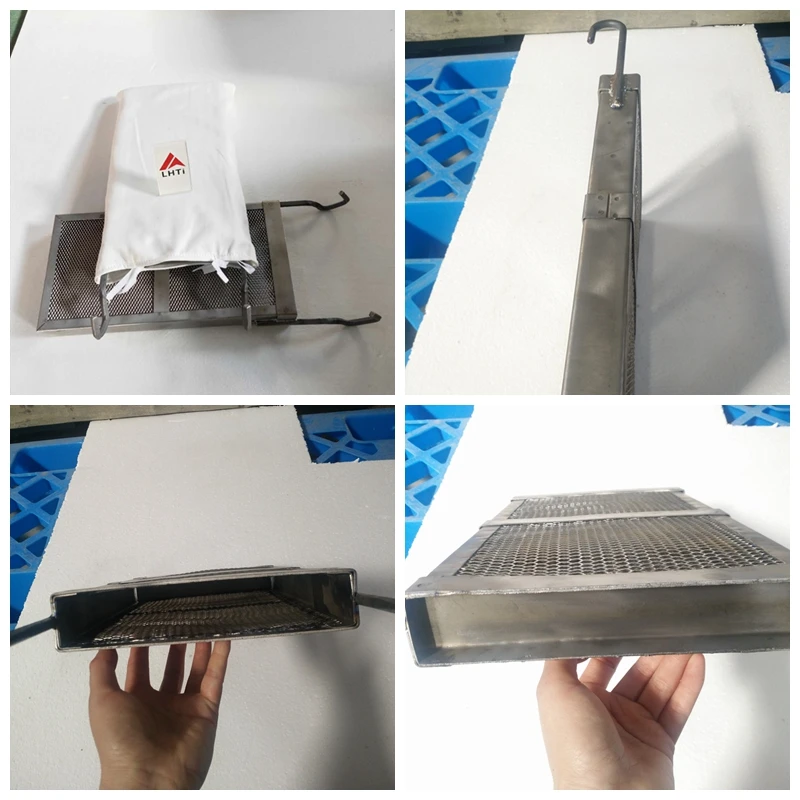

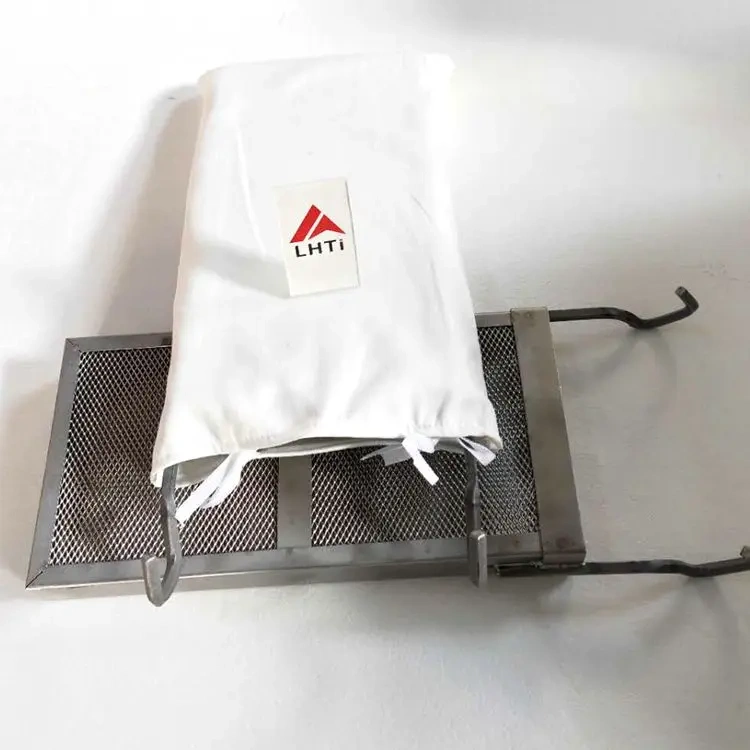

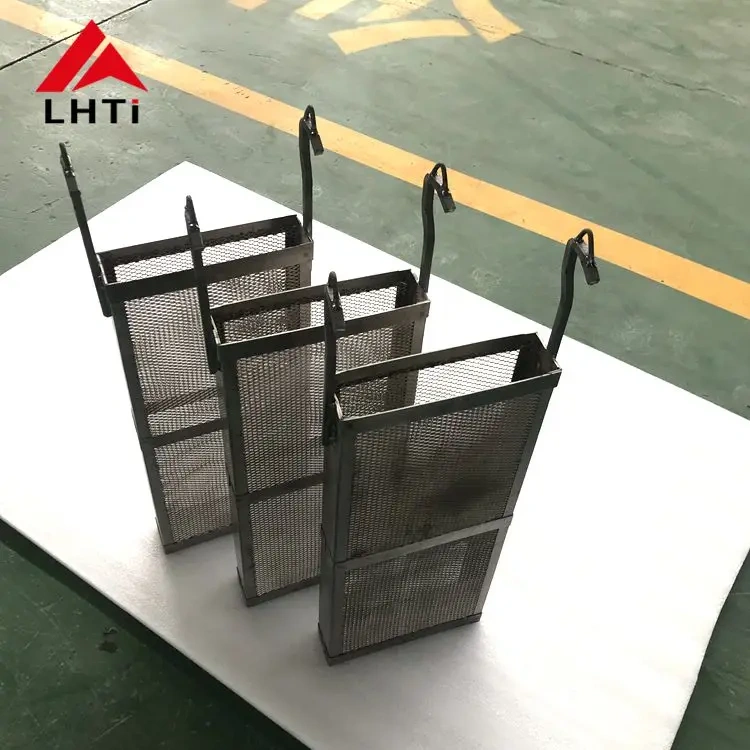

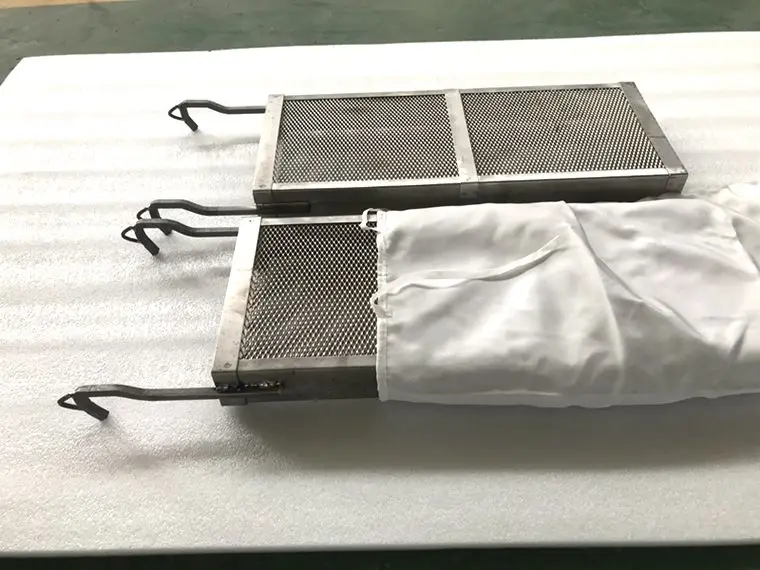

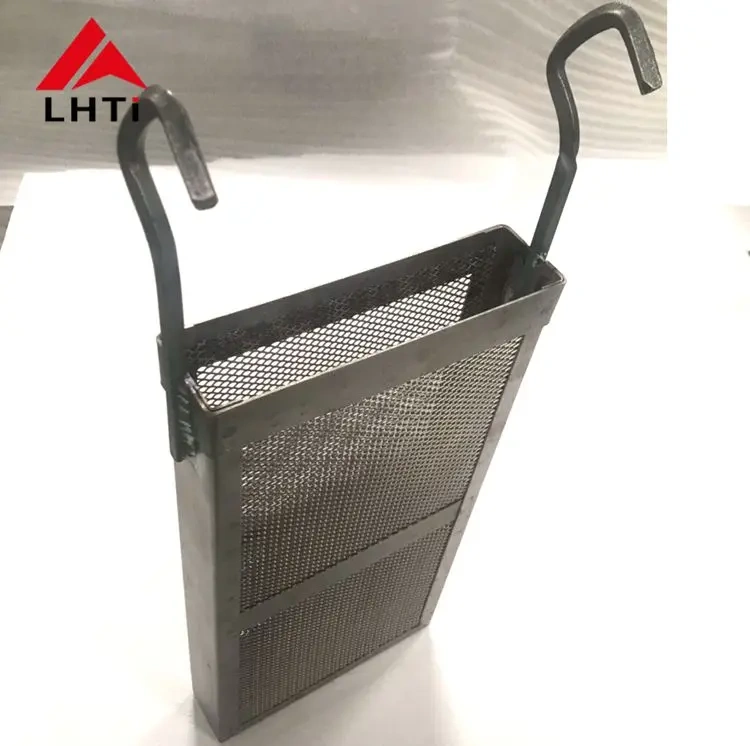

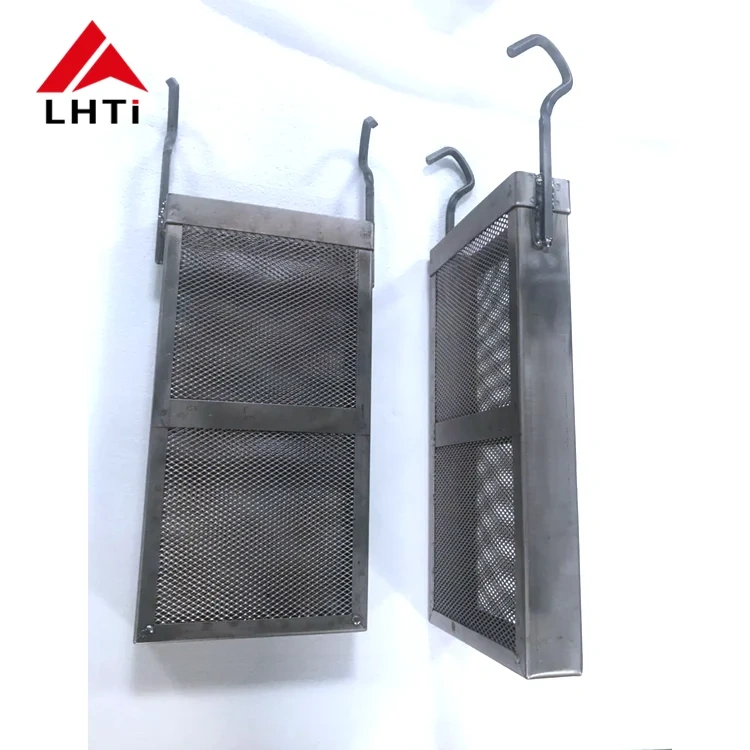

titanium basket mesh to hook with PP anode bags for Electroplating
Electroplating is a process whereby a coating is deposited onto a substrate by passing a DC current between the anode and the cathode.
Material | Pure titanium basket |
Grade | Gr1,Gr2 |
Common Size | Length x Width x Thickness |
400x120x50mm,500x130x55mm,600x150x55mm, | |
700x175x60mm, 800x195x60mm,900x215x65mm, | |
1000x250x65mm,1400x300x50mm,etc. | |

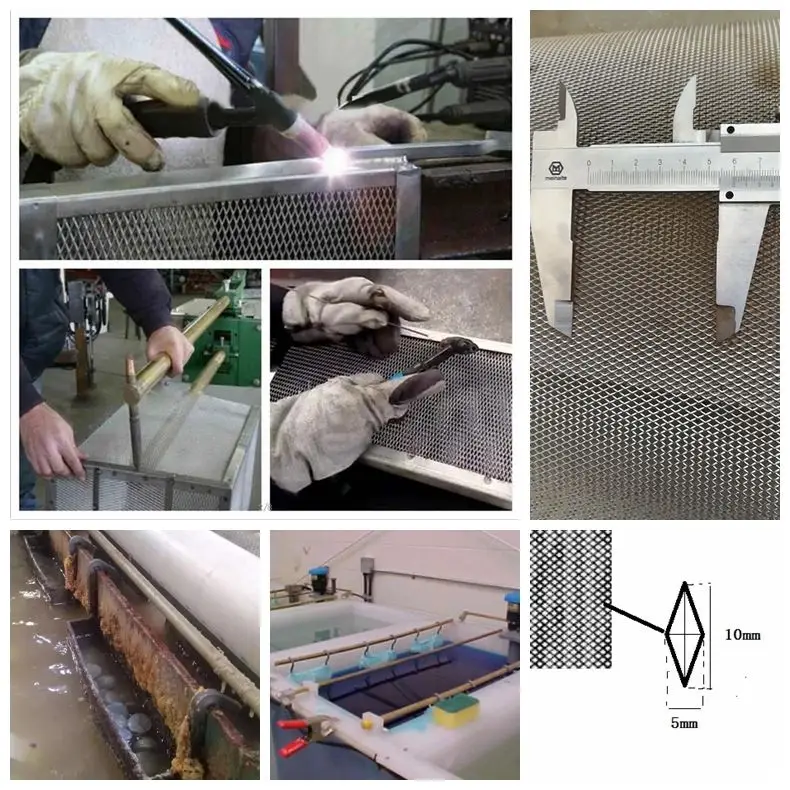

Production Method | Cutting, welding, bending |
Features | Toughness, light weight,Stability dimension |
Lower electricity consumption, high catalytic | |
Strong corrosion resistance, long working life | |
High property of acid and alkali resistance, | |
Bear high & low temperature, etc. | |
Applications | Electroplating industry, such as |
(1)Precious metal plating(Ag, Au, Rh, Pd) | |
(2)Hard chrome plating(Cr6+) | |
(3)Base metal plating(Cu, Zn, Ni) | |
(4)Precious metal recovery, etc. |

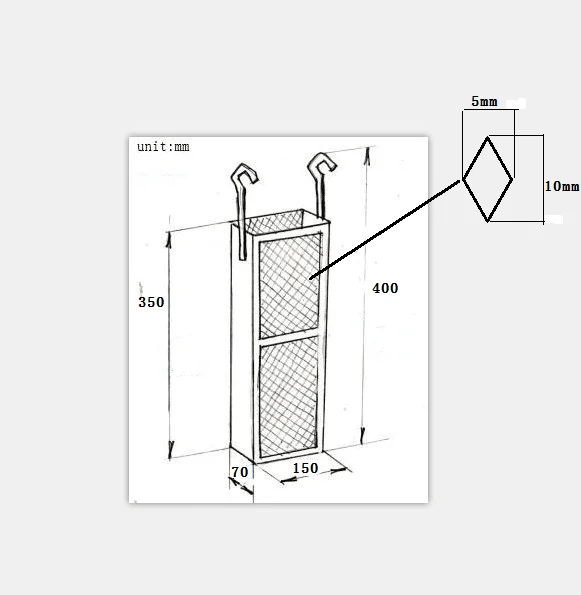

If have drawing, send it to us soon!We will give quotation ASAP!
Chemical composition (Wt%)
| ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
| Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
| ksi | Mpa | ksi | Mpa | |||
| Grade 1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |
| Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |

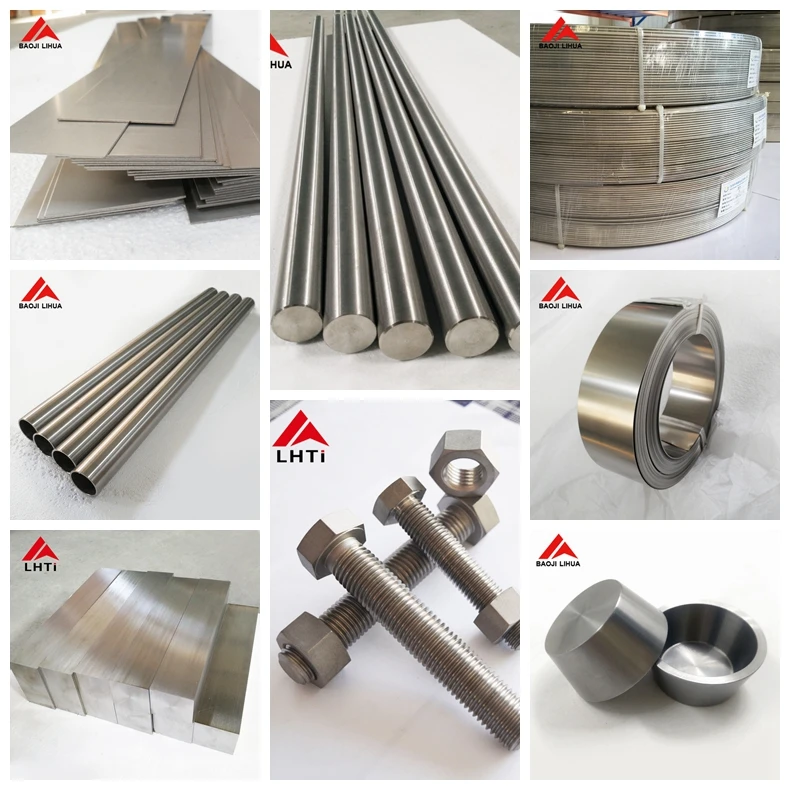

Titamium plate/sheet,titanium bar/rod,titanium wire,titanium tube/pipe,titanium fastners, titanium foil etc.
