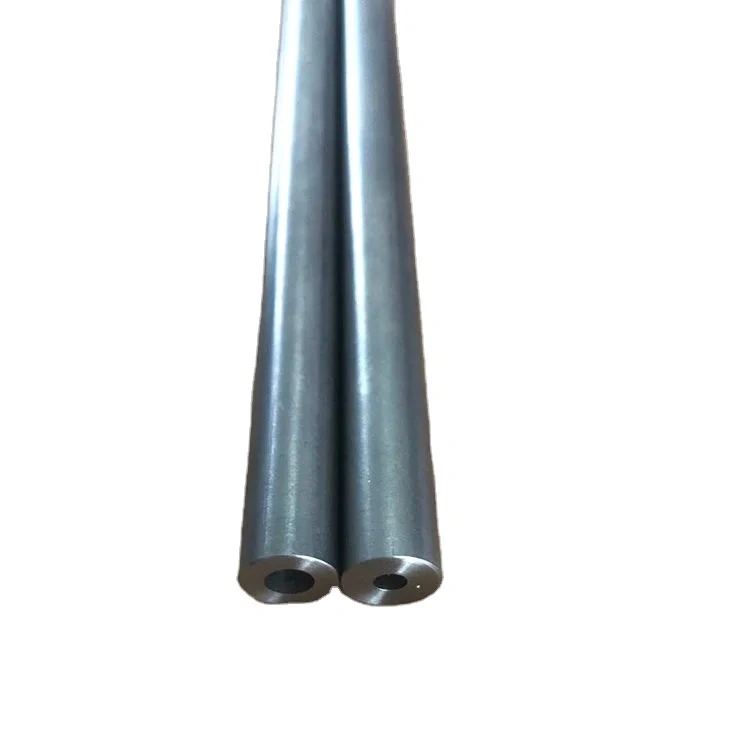

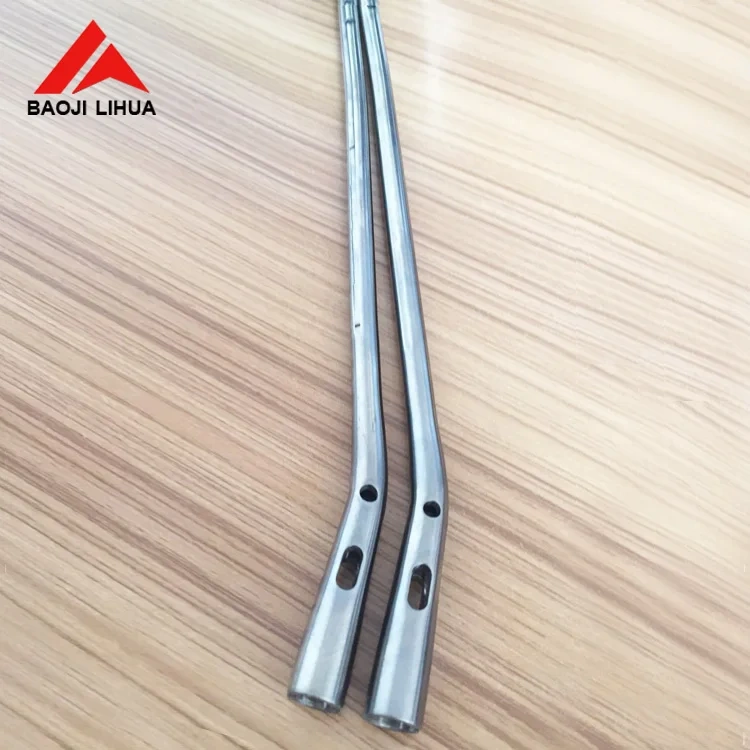

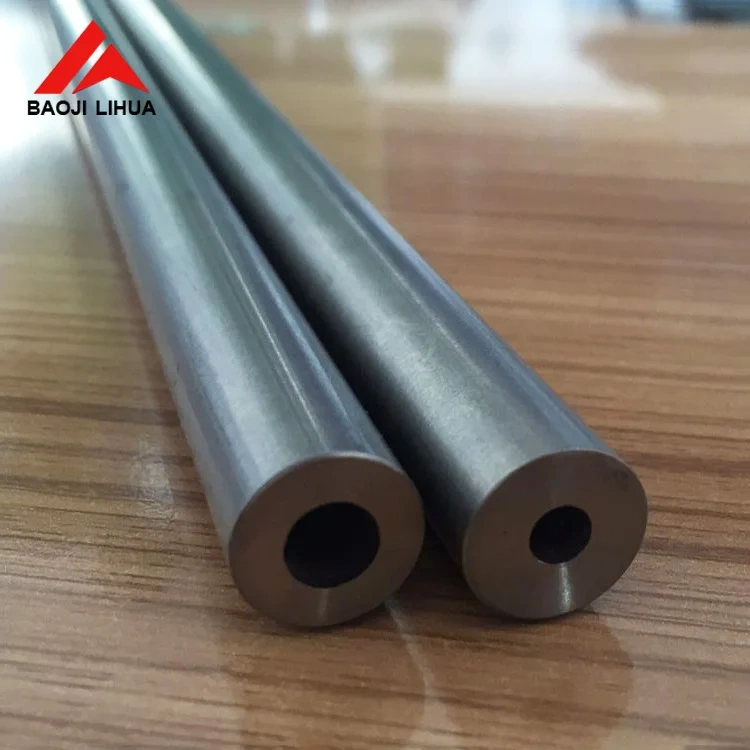

Ti6AL4V ELI Gr23 medical cannulated titanium rod for bone nail implant

Product Information of GR5 ELI titanium bar

Material: GR5 ELI, GR23

Standard: ASTM F136

Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc.

Inside diameter: 4mm

Length: 1000mm, 3000mm, 6000mm or as per your request

Surface: Polishing, Pickling, Sand blasting

Third-Party Tests: BV, SGS, TUV etc.

Crucially GR5 ELI titanium bar is not rejected by the human body – it's biocompatible. It's also non-ferromagnetic, so patients with titanium implants can still be safely examined with MRI and NMRI scans.

Other titanium Common Grades:

Titanium Grade 1 is an unalloyed, low strength titanium product containing low oxygen with high formability; this titanium grade is used in airframes, heat exchangers and desalination units.

Titanium Grade 2 is an unalloyed, medium strength titanium product. This titanium grade is used in airframes, aircraft engines and marine parts; good weldability and corrosion resistance are its distinguishing characteristics.

Titanium Grade 3 is an unalloyed, high strength, titanium product providing excellent corrosion resistance and good weldability. This titanium grade is primarily used in airframe and aircraft engine parts.

Titanium Grade 4 is the highest strength pure unalloyed titanium product. This titanium grade is used almost exclusively for
airframe, aircraft engine parts, marine, surgical implants, hydraulic tubing. Good formability and corrosion resistance are its
hallmark.

Titanium Grade 5 (6AL-4V)is an alloyed titanium product containing 6% Aluminum and 4% Vanadium; is a medium strength product. This titanium grade is predominantly used in airframe and turbine engine parts; and for use in surgical implants. Technical Info Titanium 6AL – 4V ELI is an alloyed titanium product containing 6% Aluminum and 4% Vanadium, ELI (Extra Low Interstitial).
