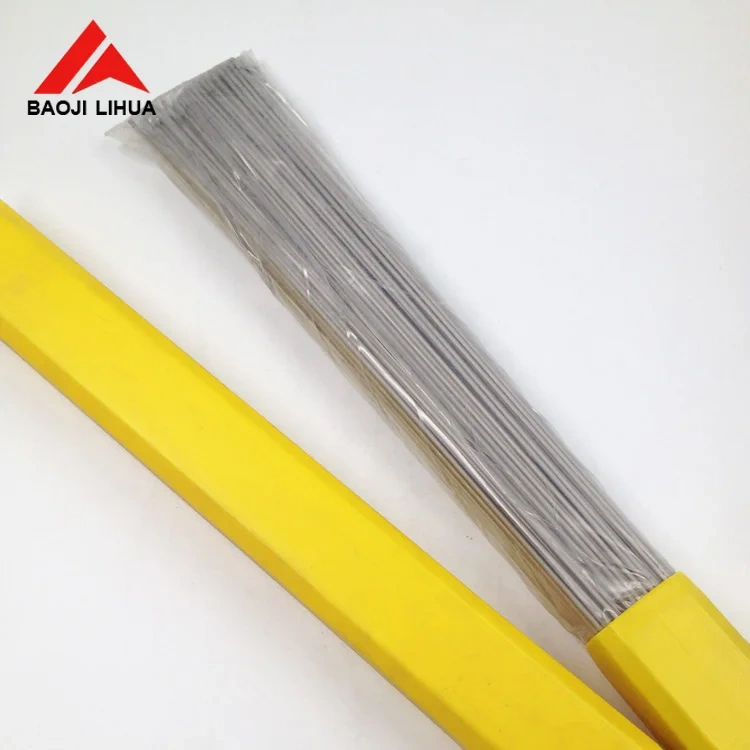

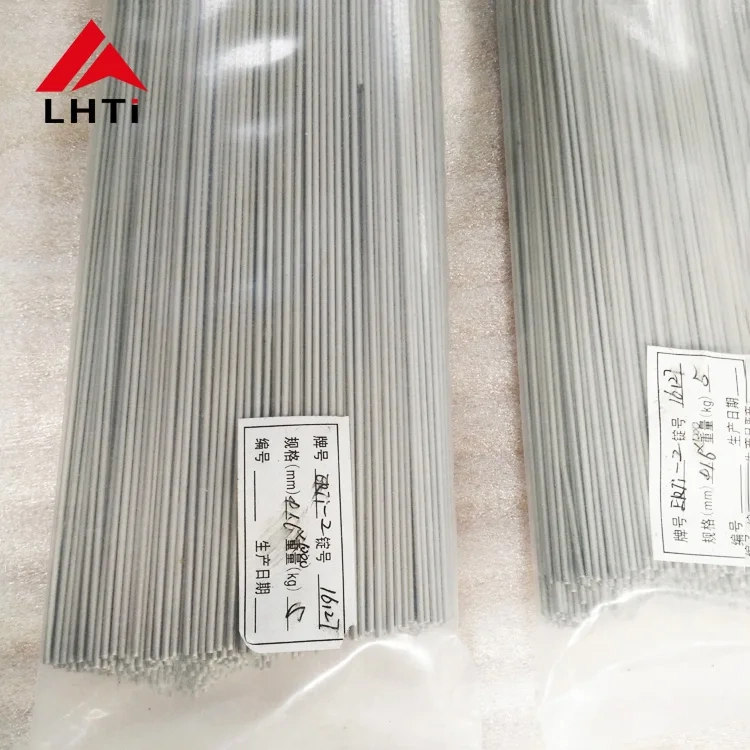

Hot sell Ti6Al4V titanium welding wire mig weld wire 1.2mm price per kg
1>. Product Introduction
| Product name | Titanium welding wire |
| Standard | Aws a5.16 . |
| Material | Pure Titanium:Gr1,,Gr2,Gr3,Gr4 Titanium alloy: Gr5,Gr7,Gr9,Gr12 |
| Diameter | 0.6-7.0mm |

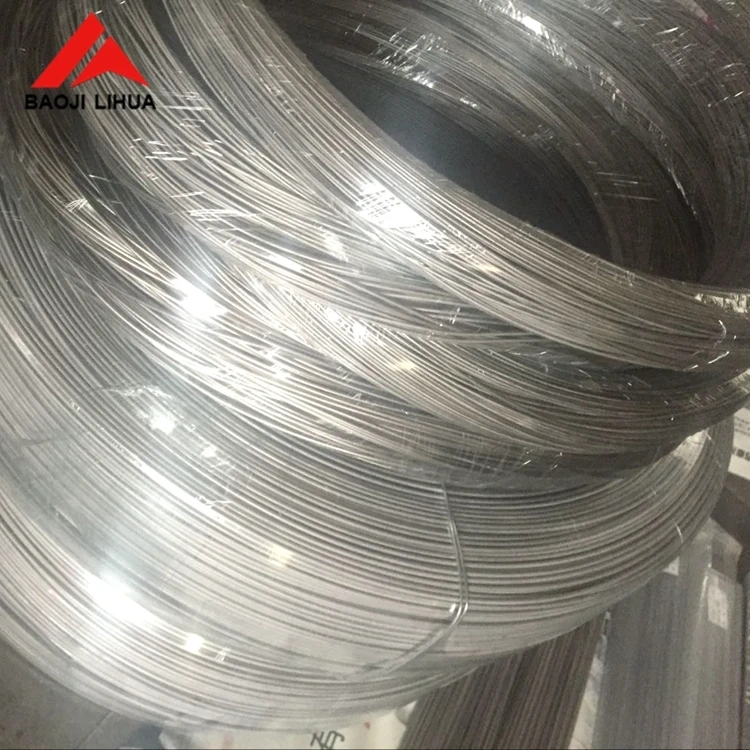

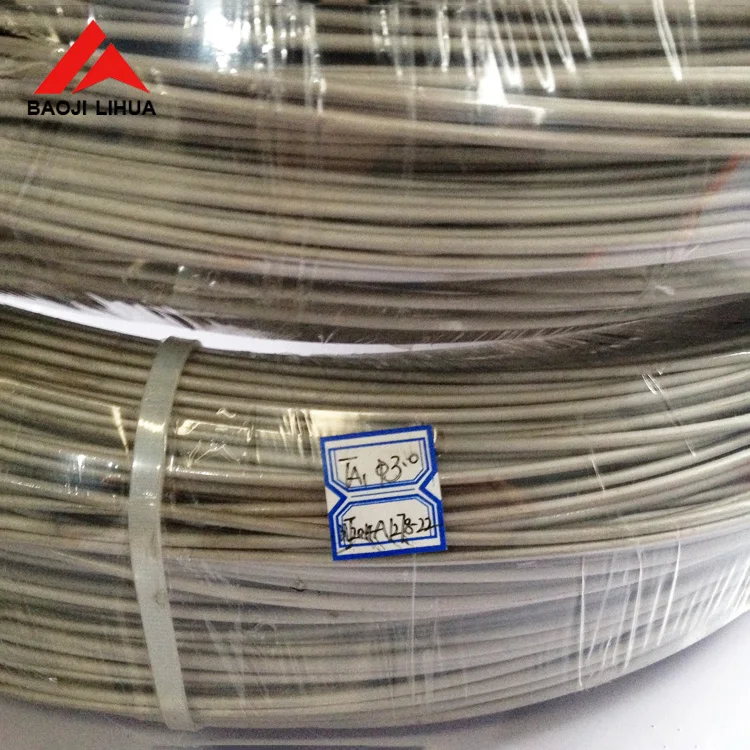

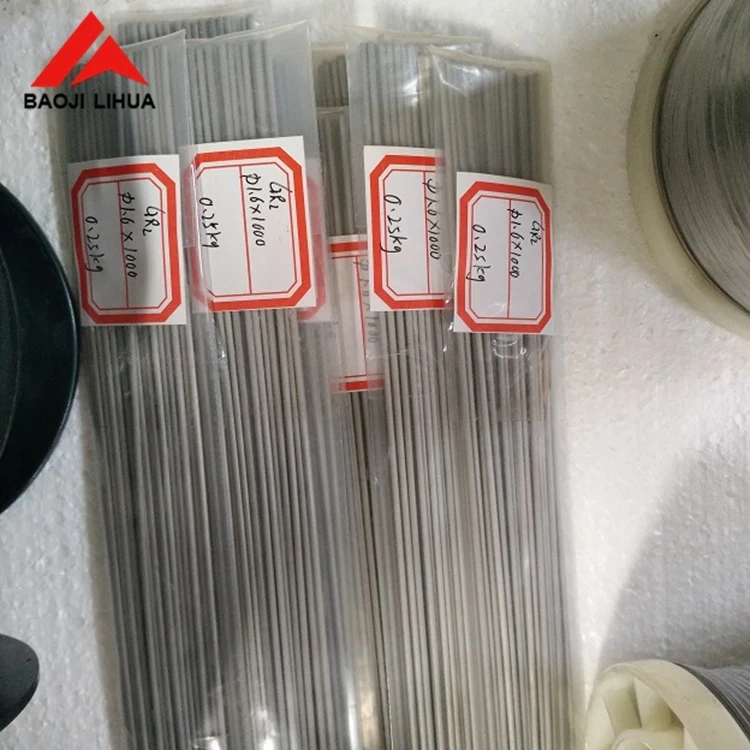

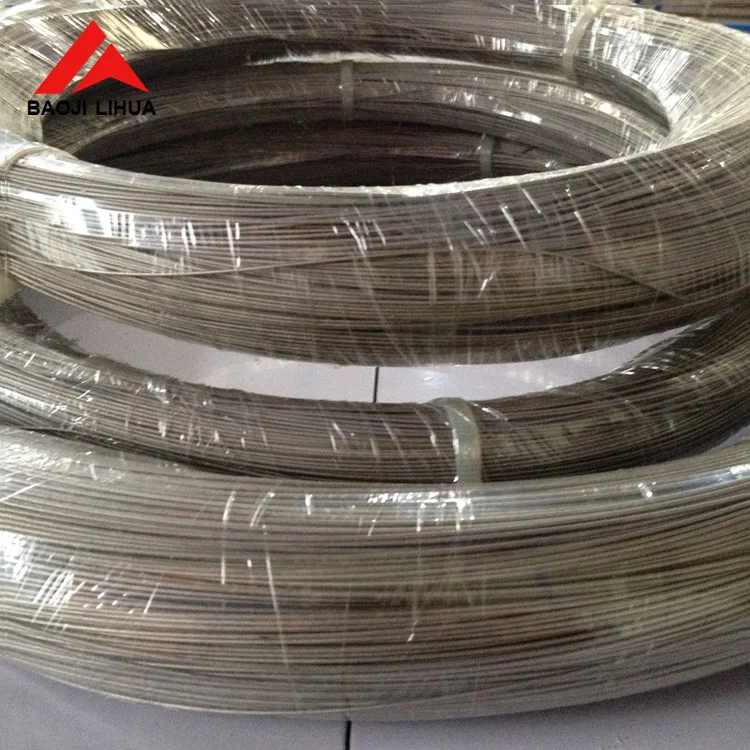

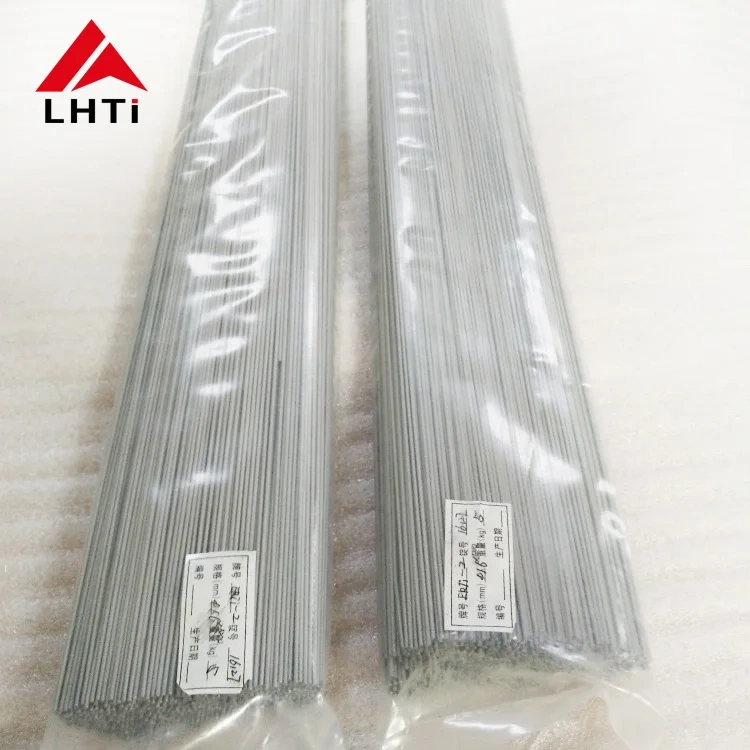

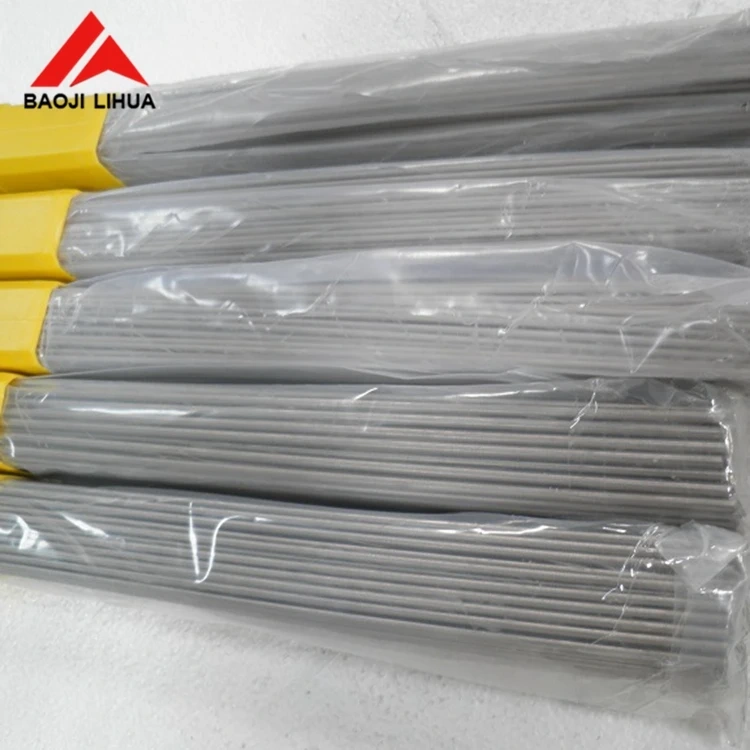

| Length | Coil wire :according to weight Straight wire:1000,2000,3000mm or as customer's request |
| Product situation | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
| Diameter range | Types | |||
| mm | inch | Coil | Spool | Straight |
| >0.78 to 3.25 | >0.031 to 0.128 | Yes | Yes | Yes |
| > 3.25 to 6.00 | > 0.128 to 0.236 | Yes | No | Yes |
* Diameter Tolerance: +/-0.05mm (+/-0.002â) or finer | ||||
Outside Diameter inch (mm) | Persissible Variations Diameter in (mm) | |
Wire In coil or spool | Wire in straight | |
0.02~0.045(0.508~1.143),excl | ±0.001(±0.0254) | ±0.0015(±0.0254) |
0.045~0.062(1.143~1.575), excl | ±0.0015(±0.0381) | ±0.002(±0.0508) |
0.062~0.090 (1.575~2.286), exc | ±0.002(±0.0508) | ±0.0025(±0.0635) |
0.090~0.187 (2.286~4.750), excl | ±0.003(±0.0762) | ±0.003(±0.0762) |
0.187~0.250(4.750~6.350), excl | ±0.004 (±0.1016) | ±0.004(±0.1016) |
2>. Products features
Titanium Wire is slivery metal with excellent properties. Density is 4.54g/cm³ lighter than Steel. But mechanical strength is higher than Steel, 2 times stronger than Aluminium, 5 times stronger than Magnesium. Pure Titanium Wire is high temperature resistance and melting point is 1942K.
High Qualiy Titanium Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on.
Titanium wire can be applyed in different walks of life. Such as military industry, medical, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire etc.
3>. Application in welding
4>.Mechanical Properties According To ASTMB863
| Grade | Tensile strength (Min Mpa) | Yiel strength 0.2% offset yield (Min Mpa) | Elongation in 2 or 50mm (Min %) |
| 1 | 245 | 170 | 20 |
| 2 | 345 | 275 | 18 |
| 3 | 450 | 380 | 18 |
| 5 | 895 | 828 | 10 |
| 7 | 345 | 275 | 18 |
| 9 | 620 | 483 | 15 |
| 12 | 483 | 345 | 18 |
