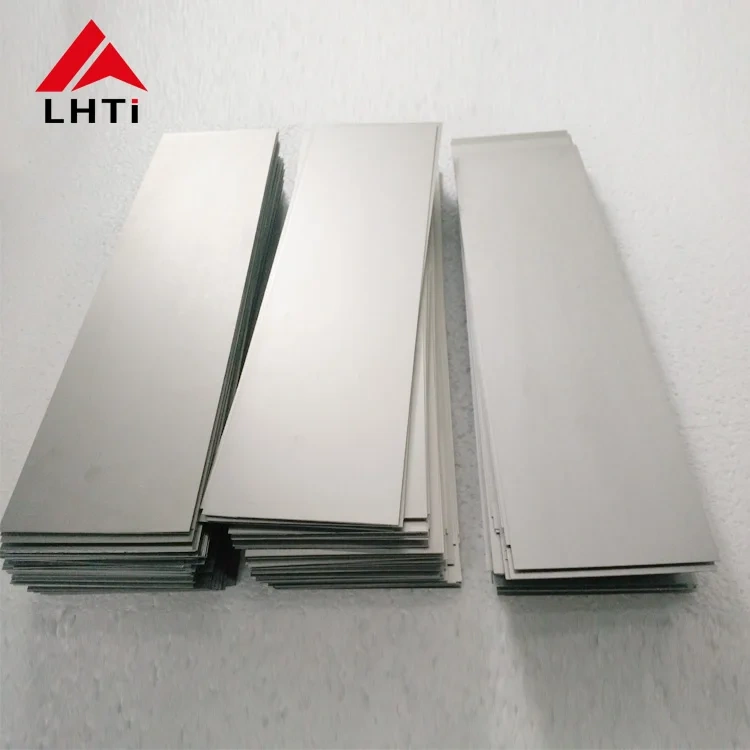

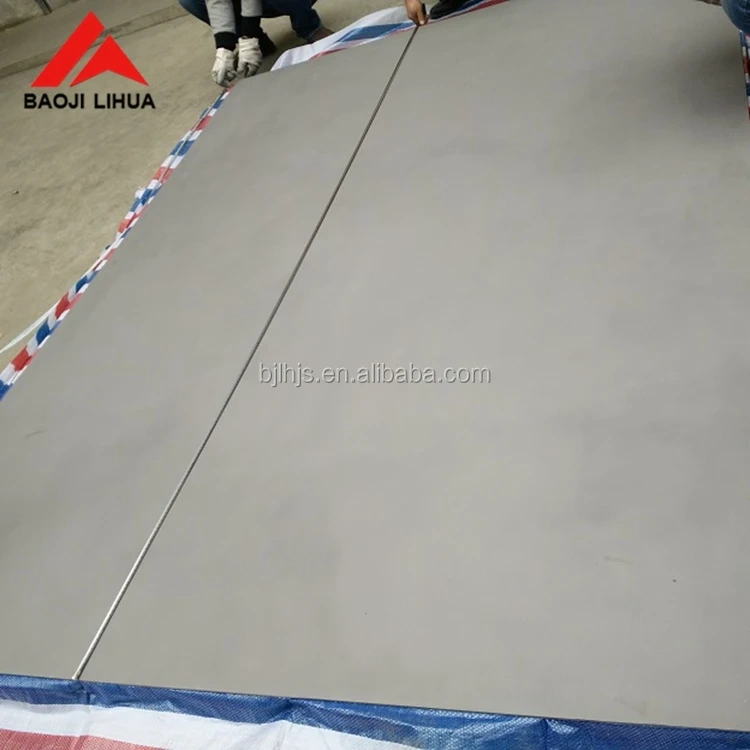

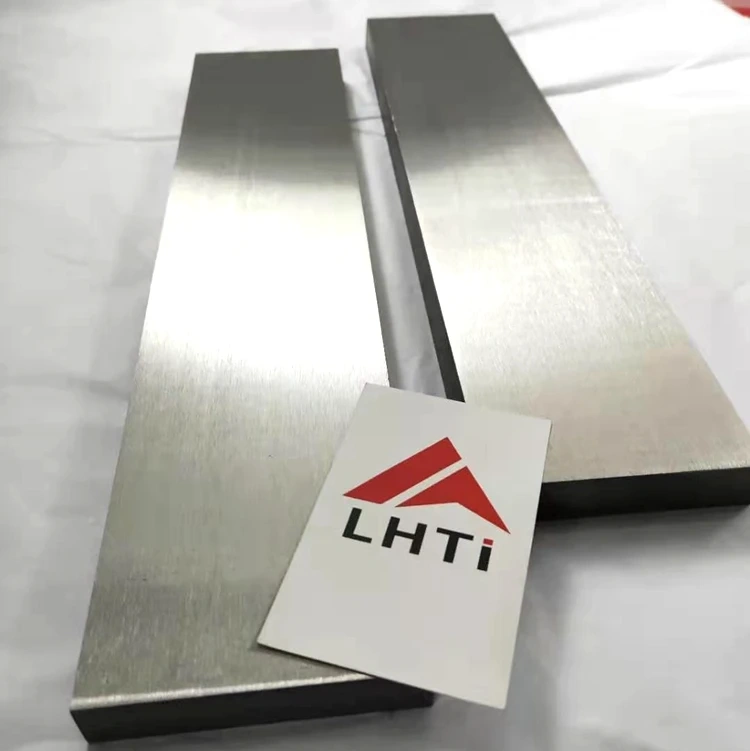

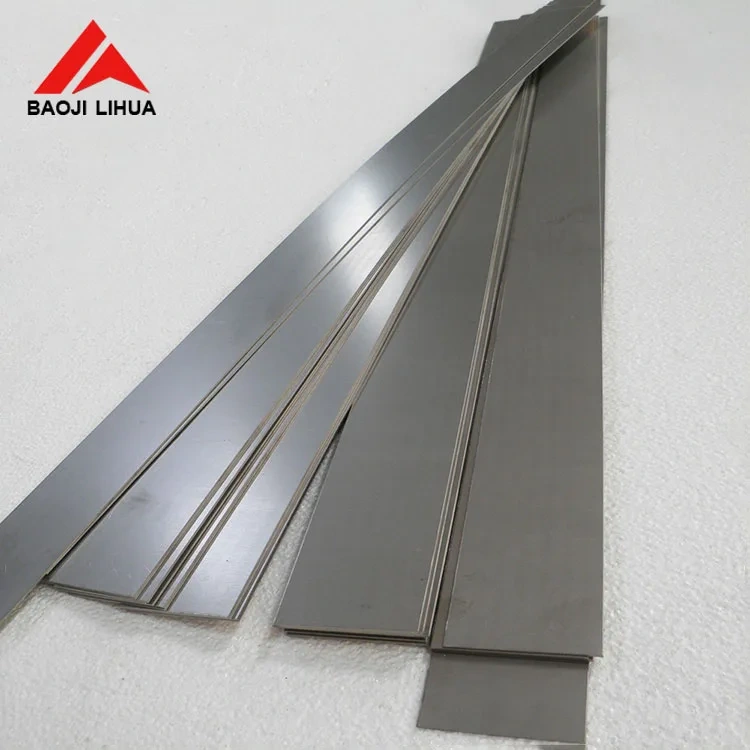

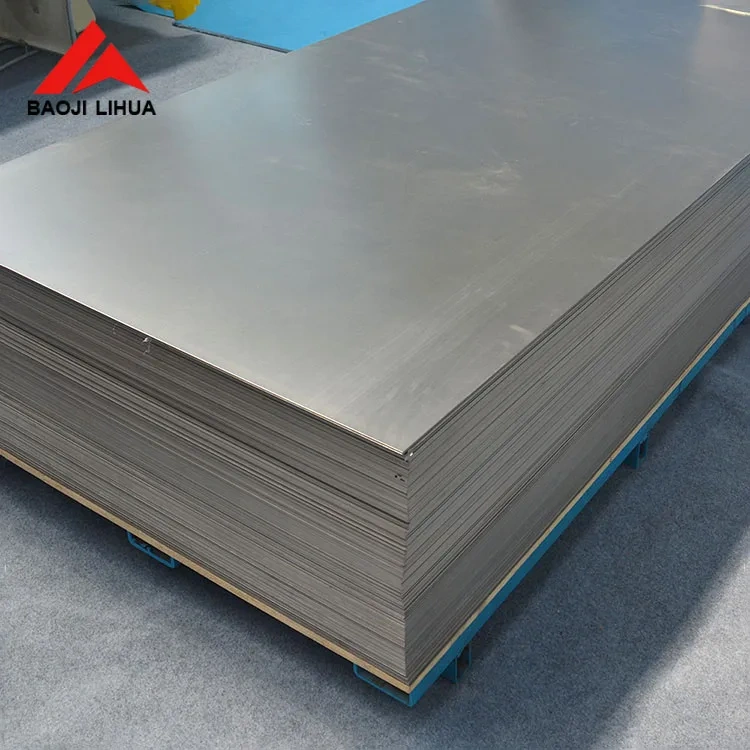

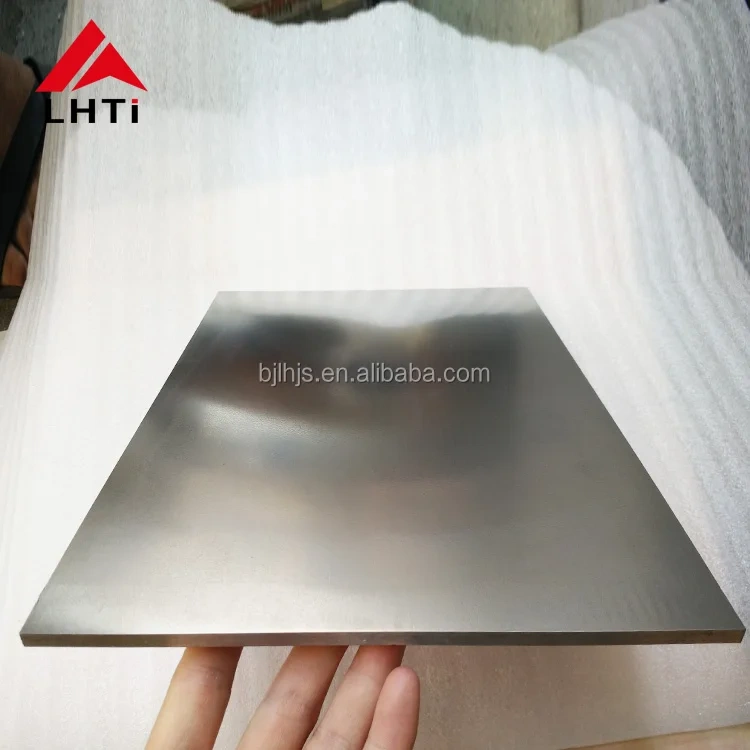

Best price ti-6al-4v grade 5 titanium plate sheet 20mm 25mm thickness
| Product name | Titanium plate / Titanium sheet |
| Material grade | Grade 5 titanium /TI-6Al4v, |
| Certificate | ISO9001:2008,TUV, material test certificate EN10204.3.1 |
| Standard | ASTM B265,ASME SB265,AMS4911,ASTM F136,ASTM F67 |
| Tehnique | Hot/cold rolled |
| Surface | Acid wash,polished |
| Dimensions | Thickness:0.3-100mm |
| Width:20-1220mm | |
| Length:500-6000mm |
Size:
Thickness(0.5mm-0.7mm)*Widthâ¤1000mm*Lâ¤2000mm
Thickness(0.8mm-4.0mm)*Widthâ¤2000mm*Lâ¤6000mm
Thickness(5.0mm-50mm)*Widthâ¤2000mm*Lâ¤6000mm
Thickness(60mm-100mm)*Widthâ¤2000mm*Lâ¤6000mm
Application:(Titanium plate)
1. Heat exchangers and condensers
2. Seawater desalination industry
3. Chemical Industry,
4. Electroplating equipment
5. Precision instruments
6. Environmental protection equipment
7. Auto industry
8. Medical and Sports industry
9. Electric power industry
Quality inspections:
1.Chemical inspection-spectro analysis(PMI machining is available)
2.Mechanical testings, such as tensile,Yield,elongation and reduction of erea etc.
3.Hardness testing
4.Third party inspections(SGS, TUV,BV etc.)
Physical Properties of different grade titanium plates:
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation % | ||
ksi | Mpa | ksi | Mpa | |||
Gr1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 24 |
Gr2 | Unalloyed Ti ("Pure") 50A -CP2 | 50 | 345 | 40 | 275 | 20 |
Gr4 | Unalloyed Ti ("Pure") 80A -CP4 | 80 | 550 | 70 | 483 | 15 |
Gr5 | Ti 6Al 4V | 130 | 895 | 120 | 828 | 10E |
Gr7 | T-50A 0.15Pd | 50 | 345 | 40 | 275 | 20 |
Titanium plate production process:
Titanium plate application:
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing various non-ferrous metals, called âChina Titanium Valleyâ.We are specialized in manufacturing, researching and marketing non-ferrous metals, mainly for titanium, nickel& nickel alloy, tantalum mill products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628.Lihua is certified by ISO9001:2008, TUV and IQNET. Our company's products have passed SGS,BV, LR'S ,TUV and other international inspection agency inspection.
