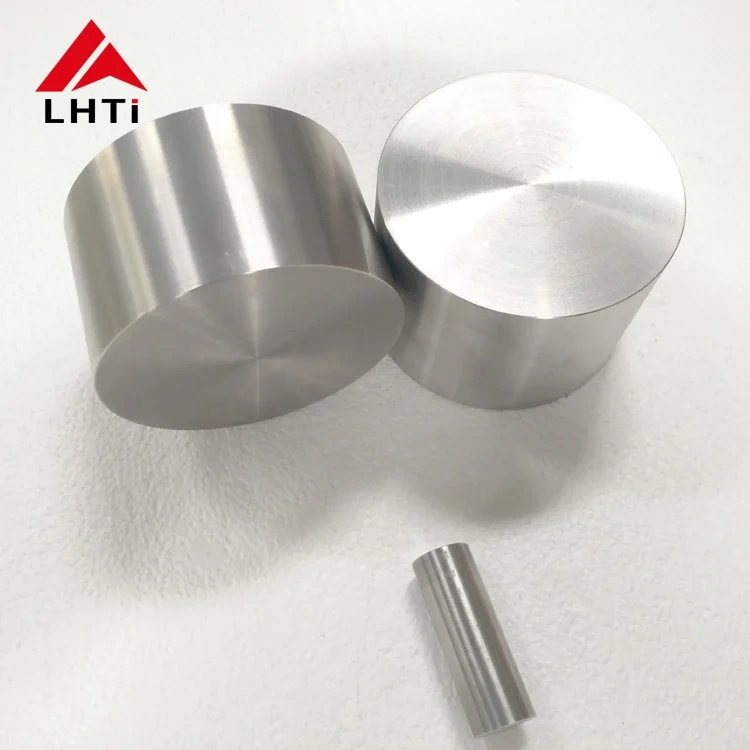

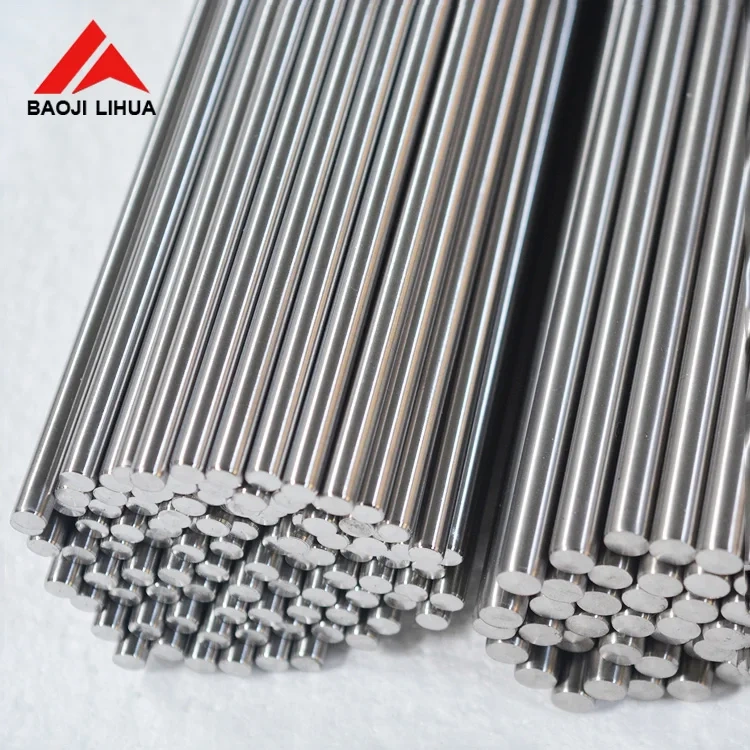

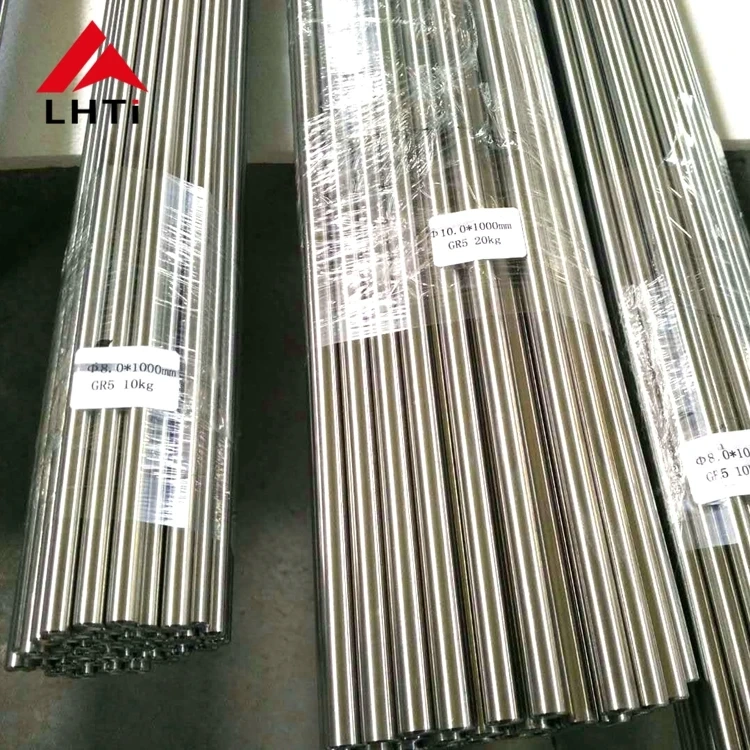

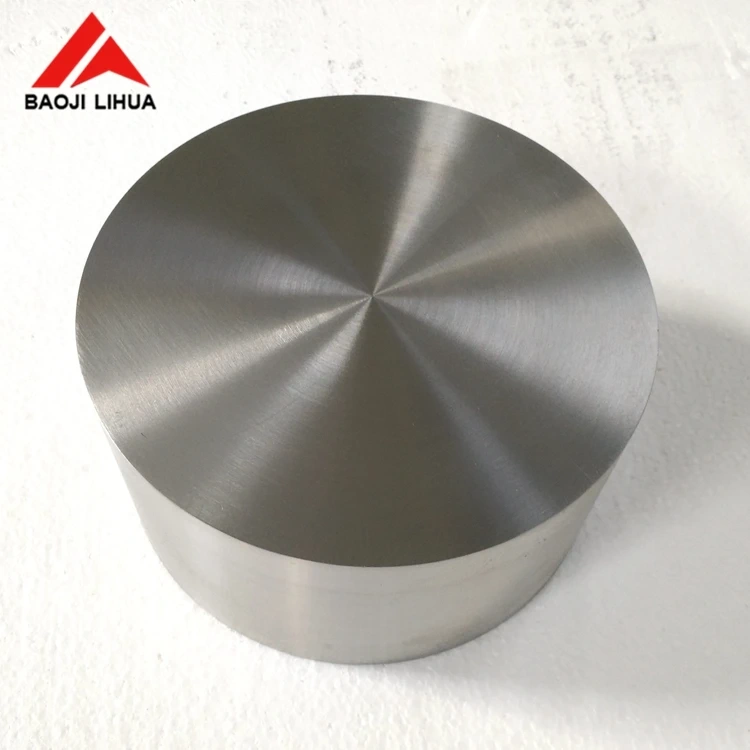

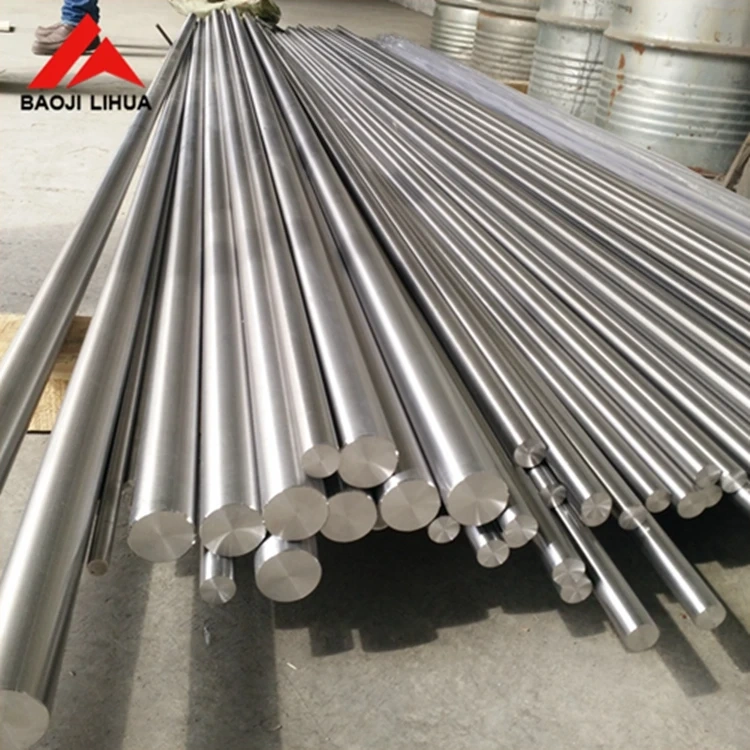

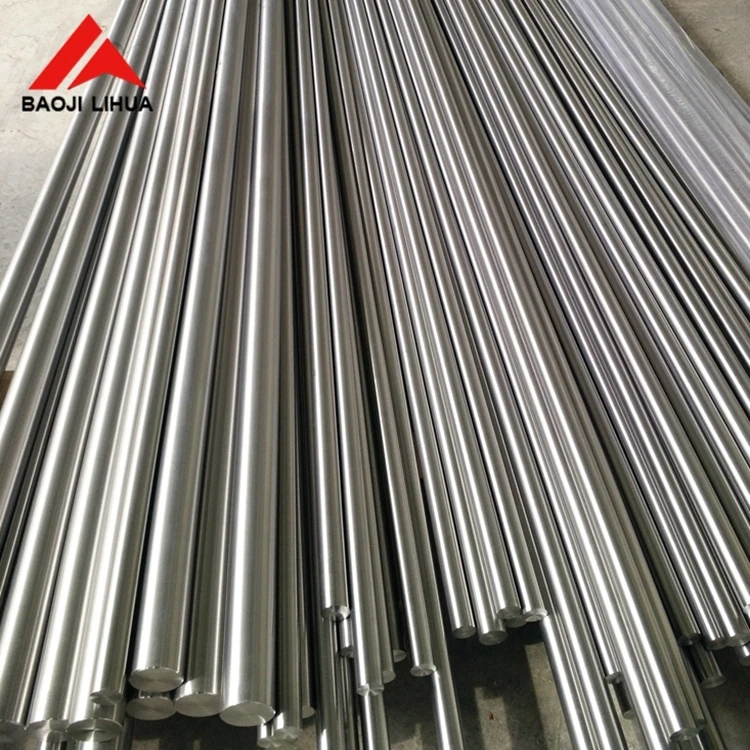

ASTM F136 ISO5832 grade 5 eli gr23 titanium medical bar 5 6 8 10 12 14mm surgical implant titanium rod price per kg
Pure titanium (Gr2, Gr3, Gr4) and gr5 titanium alloy do not contain harmful heavy metals, are non-toxic and have a very good compatibility with human tissues and blood, so they are used by the medical community to make human organs and body parts that are implanted into the human body. Titanium is a non-magnetic metal and will not be magnetized in a large magnetic field. This is also an important feature that it can be used as a medical material.
Item name | Titanium bar/titanium rod for surgical implant |
Standard | ASTM F67,ASTM F136 |
Material | Gr2, Gr5, Gr23 |
Diameter | 4mm 5mm 5.5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm etc. |
Length | 500~6000mm or according to customers' request |
Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
Shape | Round bar, square bar , hex bar... |
Feature | 1.Polished surface without any defects free from cracks no pittings 2.Two ends flating making sure length torlerance and good looking |
Certificate | ISO9001:2008, TUV, material test certificate acc EN10204.3.1 |
Tolerance of diameter
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3Max | 10 | 14 | 25 | 40 | 60 | 100 | |
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| 18~30 | 21 | 33 | 52 | 84 | 130 | 210 | |
| 30~50 | 25 | 39 | 62 | 100 | 160 | 250 | |
| 50~80m | 30 | 46 | 74 | 120 | 190 | 300 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) | |||||||
Chemical composition (Wt%)
| ASTM No. | Fe max | O max | N max | C max | H max | Al | V | Bal |
| Grade2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
| Grade 5 | 0.3 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.75 | 3.5-4.5 | Ti |
| Grade 23 | 0.25 | 0.13 | 0.03 | 0.08 | 0.012 | 5.5-6.5 | 3.5-4.5 | TiTi |
Physical Properties (Min)
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | Ï Reduction of area (%) | ||
| ksi | Mpa | ksi | Mpa | ||||
| Grade 2 | Unalloyed Ti ("Pure") 35A -CP1 | 58 | 400 | 40 | 275 | 20 | 30 |
| Grade 5 | Ti6Al4V | 130 | 895 | 120 | 825 | 10 | 25 |
| Grade 23 | Ti6Al4V Eli | 120 | 830 | 110 | 760 | 10 | 15 |
Medical titanium plate / sheet , medical titanium foil / strip , medical titanium disc / block,
medical titanium wire
