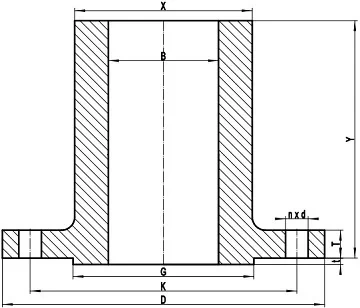

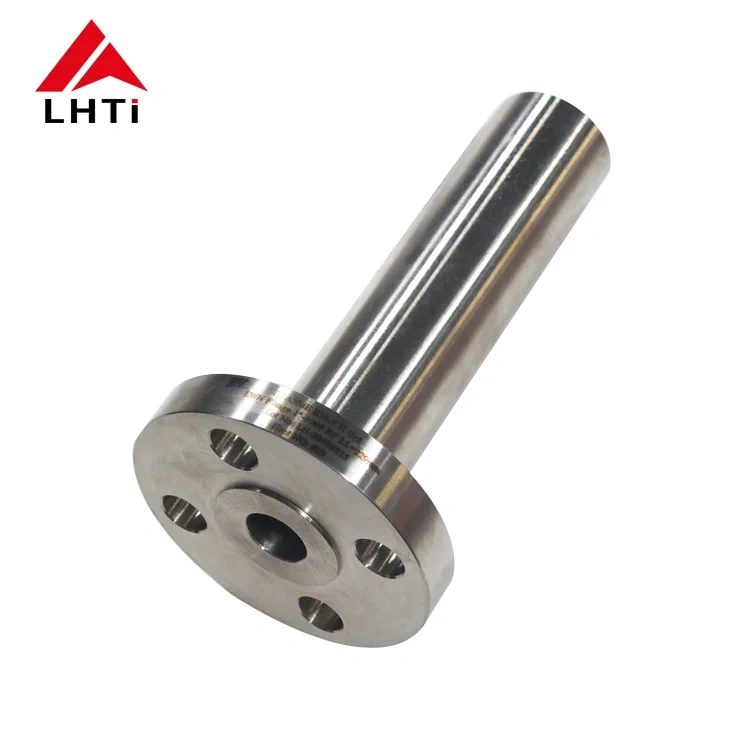

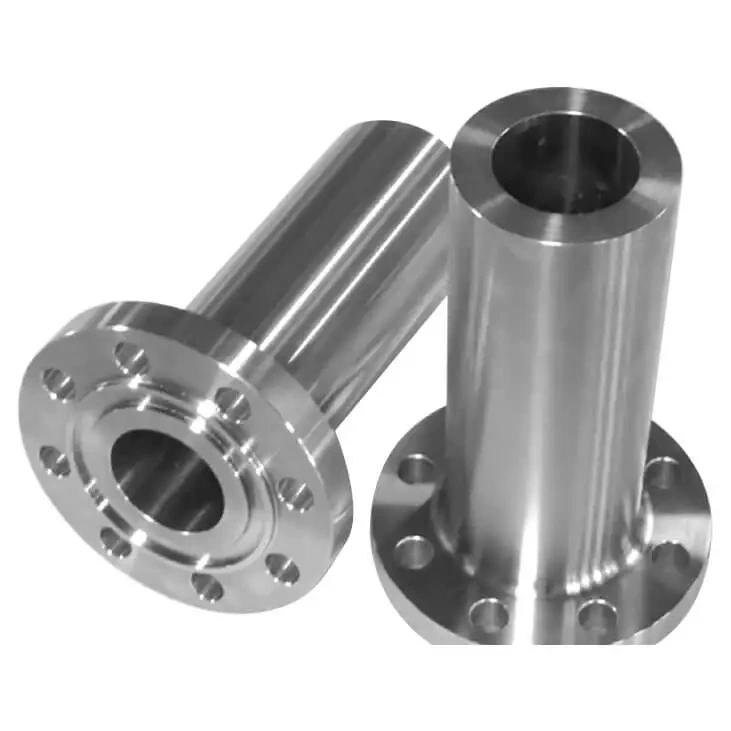

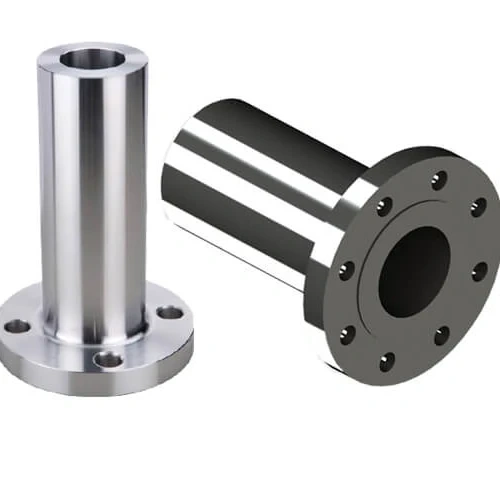

Long and high neck flange is often used in class series pipe flange. When the pipe flange with nominal size less than or equal to DN50 is matched with the cylinder, the long and high neck flange can also avoid the welding difficulty caused by the thin wall thickness at the end of the flange neck.
Connection method: flange nut, bolt connection
Production process: professional overall forging, forging manufacturing, etc Processing mode: high precision CNC lathe turning,
general lathe finishing, argon arc welding and other processing
Application scope: Boiler and pressure vessel, petroleum, chemical industry, shipbuilding, pharmacy, metallurgy, machinery, food and other industries
The height of neck is higher, which improves the rigidity and bearing capacity of flange. Compared with the butt welding flange, the welding workload is large, the welding rod consumption is high, and it can not stand high temperature and high pressure, repeated bending and temperature fluctuation. However, the site installation is more convenient, and the process of welding line rubbing can be omitted, which is more popular.
Manufacturing standard: Hg / t20615-2009, ASME B 16.5
